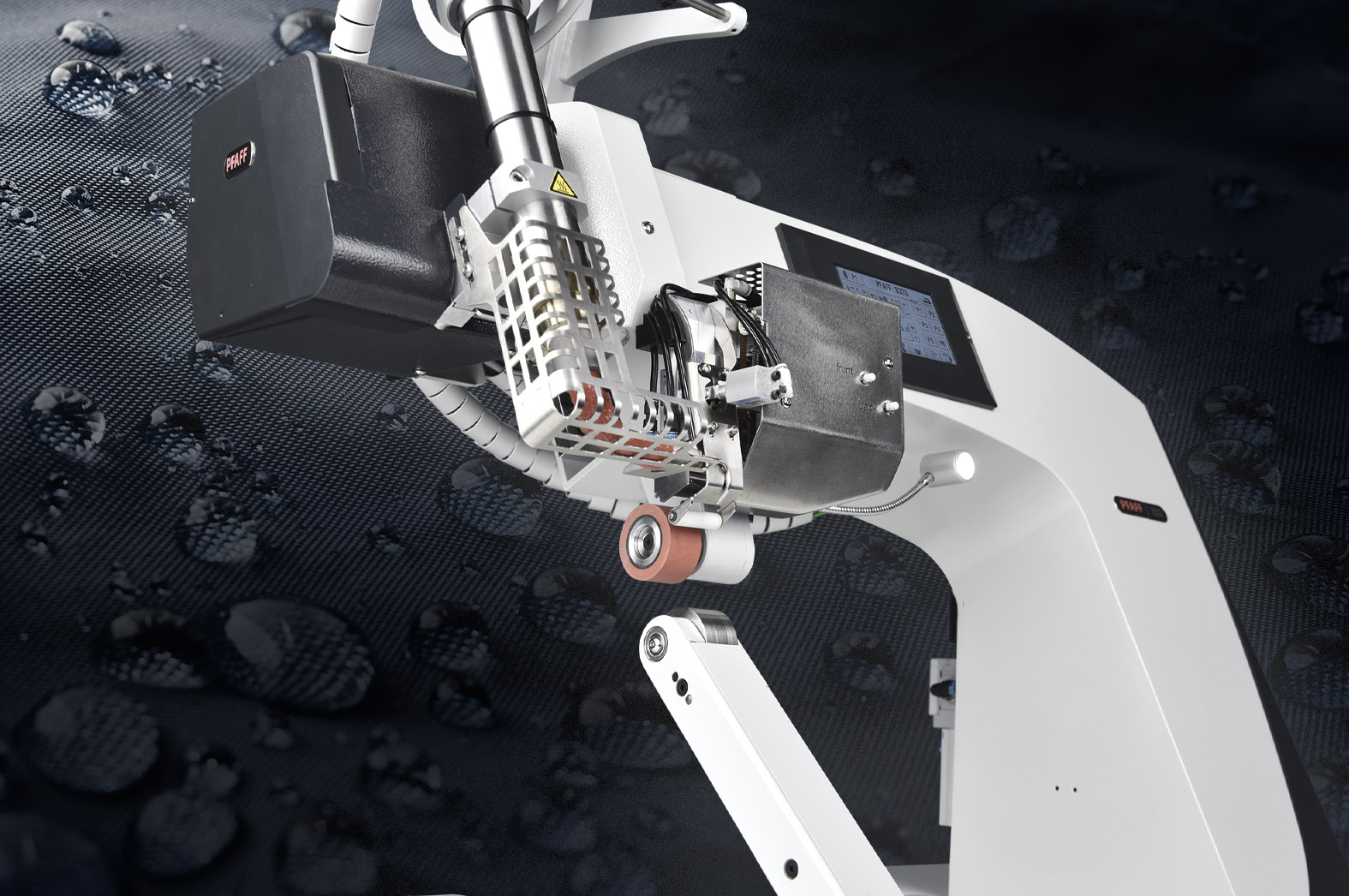

Hot-air taping machine for welding continuous seams on water-resistant, waterproof and breathable materials

New: Maximum process control
All relevant process parameters (such as air flow, pressure, temperature and speed) can be programmed and saved via touchscreen. The new 3-D axis nozzle position of the new PFAFF 8333 provides the last missing link for unique process control

Differential feed for highest seam quality
Two separate drive motors for the top and bottom feed roller guarantee an optimum adaptation to the operation (e.g. smooth seams or fullness for formed parts)

New: Tape cutter with separate drive
Trimming of the seam tape becomes unnecessary (welding from the beginning of the tape), resulting in a considerable reduction of the tape used. The tape cutter is electronically controlled, with precision adjustment for an exact setting. It can now handle widths from 8 - 30 mm.

Maximum Output - Less material ussage
20% increased productivity in comparison to other tape welding machines. Up to 15% reduction of the amount of tape used compared to standard machines

Variable post- and roller concept
Customer application in focus! Variable post concept (post width 25, 28 and 32 mm and post positions like post from front, vertical post and post from back – depending on the operation). Several roller diameters are available: 45 mm for standard operations, 25 mm for shoes and automotive (narrow curves) applications.

New: Small post with 25 mm diameter
Small post with with central belt drive for applications with very small radii

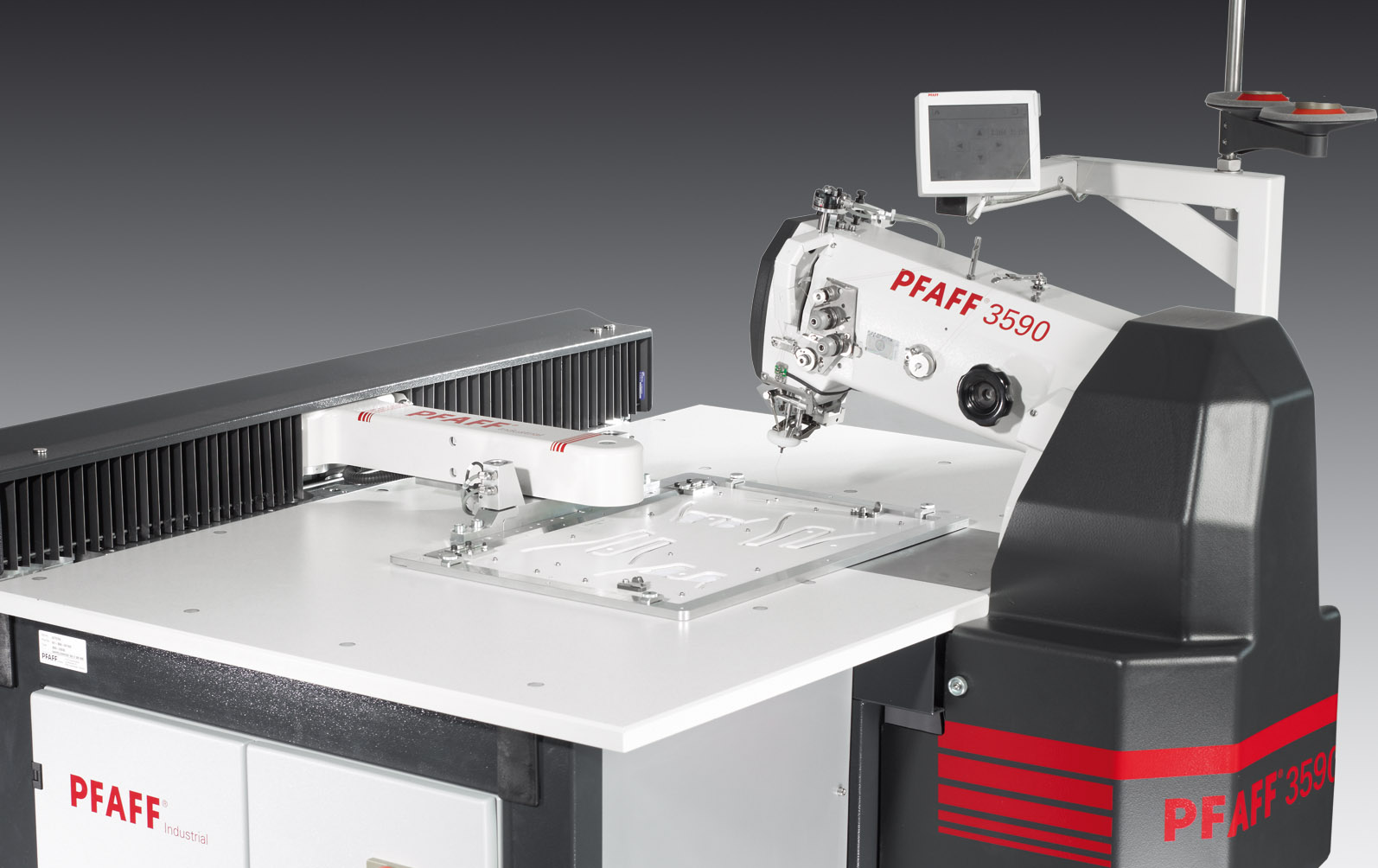

Programmable large area computer stitcher
Nähfeld max.: 500 x 400 mm

Typical field of application:
Automated sewing applications in the field of automotive, technical textiles and leather goods

•
  Highest seam quality and a perfect stitch quality in multidirectional sewing over the whole sewing area.
• Programmable (continous) jumping foot with counter presser up to 9 mm lift
• Very accurate seam quality. Due to the intermittent feed (feed stops when needle enters material), shifting of the material in the work clamp is avoided
• Floating foot for the sewing template
• Sewing head tilts 70 mm for easy material handling
• Option: Kit with needle-bar turning device and bobbin thread slide for an optimum stitch appearance to avoid loop stitches on highly decorative seam patterns with circular seams
• Kit for reliable and secure seam start by controlled thread clamps (top/bottom)
  consisting of:
  -Bobbin thread clamp device
  -Needle thread wiper
  -Bobbin thread monitor via sensor
  -Needle thread monitor via stitch counter (Option: sensor)

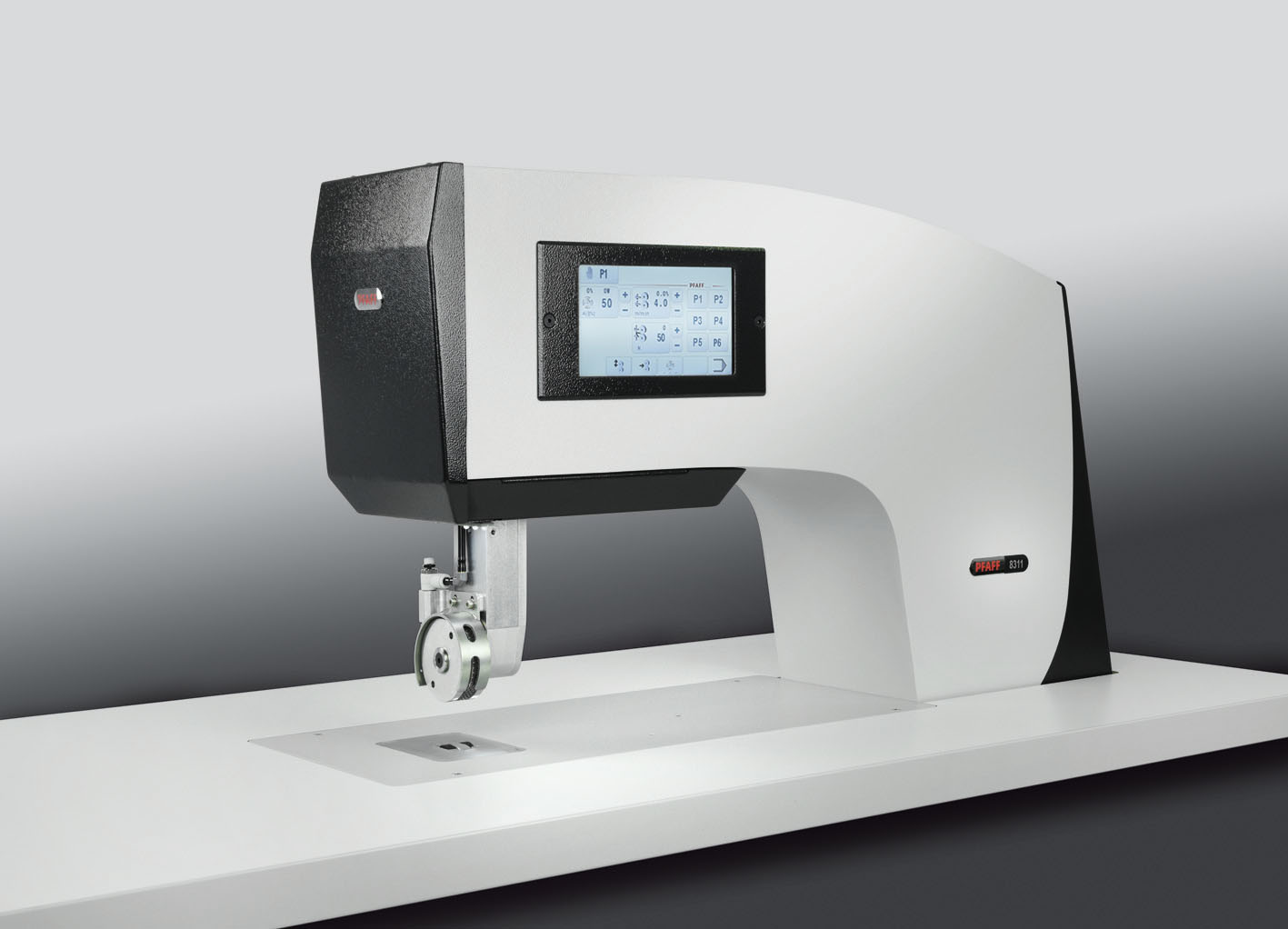

Ultrasonic sealing machine
with rolling sonotrode

• Amplitude or power, speed and pressure are controlled electronically
• 100% reproducibility of the welding process
• Most of thermoplastic sheets, laminates, textiles and non-wovens are weldable
• Equipped with differential feed; separate drive for sonotrode and anvil wheel; that means smooth, non-distorted seams or the possibility of adding a some fullness
• Process reliability through monitoring of welding parameters with integrated device for the control of the amplitude (so that reliable processing is possible even when sewing over cross seams)
• High production speed
• Touch screen: Simple handling with
  pictograms
• Process reliability by monitoring of welding parameters (constant performance)
• No compressed air required
• 8311 CS: Cut & Seal
• 8311 CS dual: Cut the edges, seal the them and seam a second weld seam
• New: PFAFF 8311 with long arm

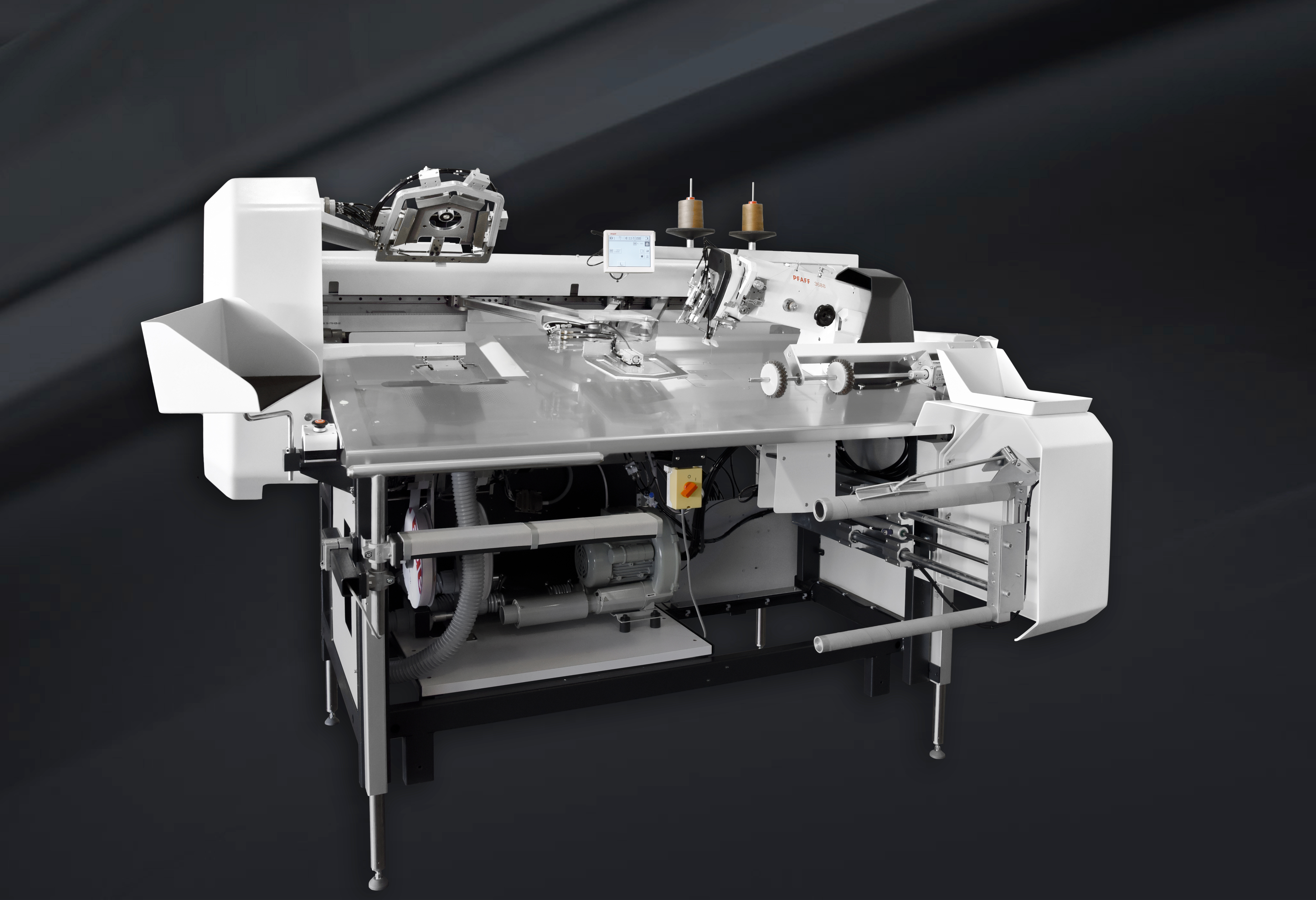

Programmable automatic pocket setter

• Consistent high quality and high output
• Perfect sewing results also when sewing stretch fabrics
• Forms und templates may be easily interchanged within a few minutes
• Sewing head and hook (XL hook) are synchronized by the electrical axis
• The machine is equipped with an integrated folding station and a stacker
• Sewing programs can be created and modified on an usual PC (with special software)
• Sewing parameters can be changed via the touch control panel
• Processing of pre-folded pockets is possible
• NEW: Fullness function and automatic bartack reinforcement, prädestiniert for stretch fabric (for subclass -132 and -232))
• NEW: Electronically-controlled thread tension
• NEW: Direct drive and infeed slide with servo drives
• NEW: Network connection (PFAFF CONNECT)
• NEW: Adjustable vacuum strength
• NEW: Basic kit "solenoid" - standard on all machines
