HR1601TH **

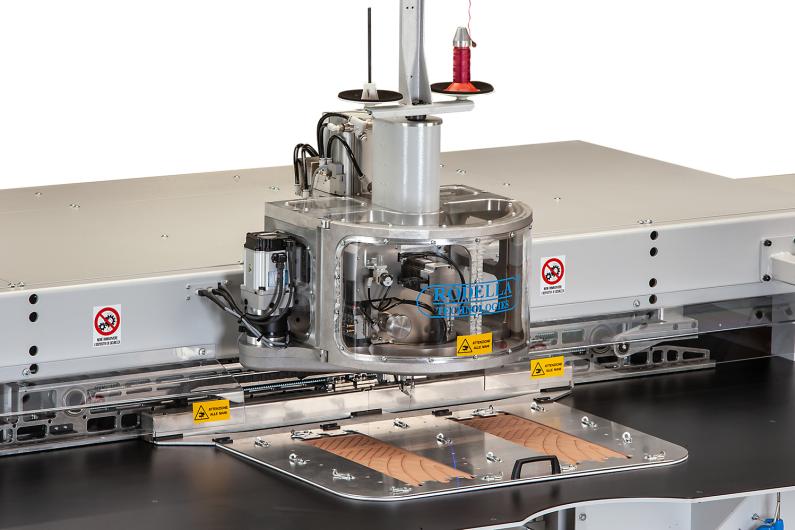

Programmable computer controlled sewing unit with 360° rotating sewing head for decorative stitching or for joining operations on bags, leather goods, footwear and special applications from RODELLA TECHNOLOGIES

TECHNICAL SPECIFICATIONS

• Thanks to the 360 degrees rotation of the sewing head, needle and hook align, within few milliseconds, in the most suitable direction in order to grant a perfect stitch formation and high speed in the corners
• Sewing head with independed axes.
• Working area: 1000 X 600 mm.
• Max speed: 2000/2500 p/min.
• Height adjustment of the foot electronically controlled and programmed according to the thickness of the sewing material.
• Automatic lifting and lowering of sewing head during the movements without sewing with the possibility of excluding it or inserting it from the program where necessary.
• Large capacity rotary hook.
• Programmable tension of the thread.
• Stitch-length: 1 -12 mm.
• Clutch: unique system for thread clamping of the needle thread underneath the throatplate. This function, independently selectable, guarantees a perfect and clean start of sewing.
• Programmable thread cutter system allows to exclude the cutting of the bobbin thread, directly from the program, to ensure a perfect stitch formation from the beginning as well us to save time by subsequent operations.
• USB port for data transfer.
• Easy to use control panel with touch screen.
• Thread-break detector.
