Autex Monocapa is a fabric feeder for one single layer, preferably to be used with an Autex conveyor cutting table or any automatic cutter in the market. The Autex Monocapa feeder is stationary and solid, working with an electronic cradle that allows tensionless feeding of fabric onto the table or automatic cutter intermittently or constantly until the roll is finished.

Autex Monocapa is the ideal fabric feeder for industries of furniture production, car seats, suit
& shirt manufacturers, among others which require cutting many different types of materials quickly, reliably and safely.

TECHNICAL CHARACTERISTICS

• Color touch screen control panel

• Fed via highly sensitive infrared sensor
• Feeding system by way of cradle with a ONE PIECE DOUBLE CONVEYOR BELT
• Self-loading cradle
• The one-piece double conveyor belt system PREVENTS FABRIC MARING and problems caused by loose threads falling between rollers of multiple bands conveyor belt systems
• Automatic threading and unthreading of fabric
• Fabric rewinding if you wish to remove it because of faults or color variations
• Device to spread inversely rolled fabric rolls
• TFS (Tension Free System) Dancer bar for spreading elastic fabrics without tension
• Pressure bar on exit for improved spreading of light or very elastic fabrics

OPTIONS

• Improved inverse feeding additional roll
• Roll bars covered in rubber for improved feeding
• End of fabric on roll detection system
• High speed cutter
• Meter counter
• Versions for rolls up to 100kg, 300 kg, & 1000kg.

Autex Lider Plus is an automatic spreading machine with the best spread quality in the market. Supplied by a Roll Loader System from the Table to a built-in cradle, a single conveyor belt across
the usable width of the machine. It can unroll any type of fabric quickly and naturally preventing marks on delicate fabrics caused by the partial tension from conventional multiple belt systems.
Autex Lider Plus complies with strict EU safety standards.

• TECHNICAL CHARACTERISTICS
  - Equipped with robotic technology.
  - Automatic check control system.
  - Speed variation from 0 to 100 metres/minute.
  - High-speed cutting variation.
  - Feed by highly sensitive infra-red sensor.
  - Intelligent detector at end of stack with return to load point.
  - Automatic spread height detector.
  - Machine driven by four-wheels.
  - Software program to connect the zigzag with cut.
  - Program to count meters per roll, working time and total meters per spread.
  - Intelligent control handle.
  - Feeding system by cradle, a one piece double conveyor belt.
  - One single conveyor belt system prevents marking the fabric and problems caused by loose threads falling between rollers on multiple conveyor belt system.
  - Roll bar for feeding from roll without cradle system
  - Automatic threading and unthreading.
  - Fabrics rewinding to remove faulting or colour variation.
  - Device to spread the other side of the fabric roll.
  - Tension Free System. Spread elastic fabrics without tension.
  - Programmed feeding.
  - Automatic feeding.
  - Digital touch screen with parameter and information on functions.
  - It can perform normal, programmed and scale spreads.
  - Self-adjusting brakes ramp according to spread of machine.
  - Adjustable acceleration.
  - Safety brake in case of power failure.
  - Maximum roll weight recommended: 100kg.
  - Maximum diameter of the roll: 60cm.
  - Maximum height of the spreading: 22cm.
  - Maximum height for manual loading: 0.9mts.
  - Power consumes: 2.6kw.
• LIDER PLUS OPTIONS
  - Remote EWON connection for technical assistance
  - Spreading in zigzag.
  - Spreading with adjustable high speed cuts with or without mobile clamp.
  - High speed spreads in zigzag cut.
  - Spreading in tubular fabric roll; or in book-folded.
  - Double feeding for roll spreading.
  - Book folder tray for open and tubular fabric.
  - Fast roll loader.
  - Smooth, air blowing, conveyor and vacuum tables
  - 3 different types of transfer table for machine: manual, manual on rails and motorised on rails.
  - Rails and operator’s platform.

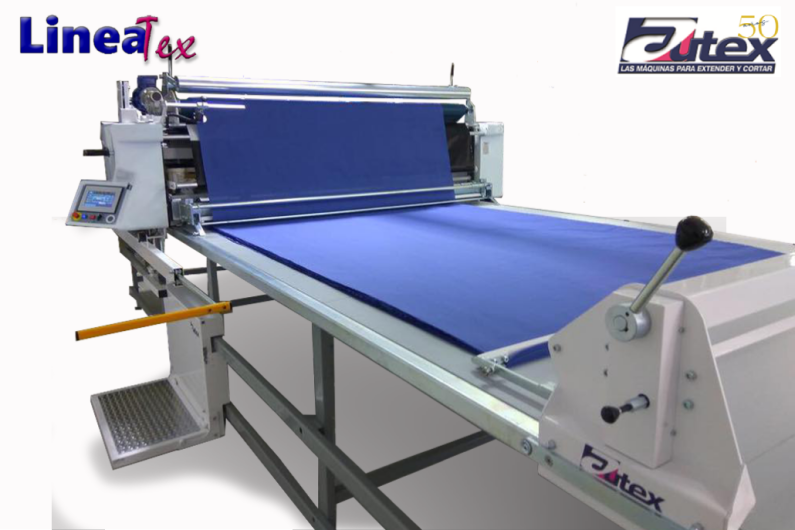

Autex Linea Pro is our most versatile machine at the best price. It is prepared to spread open fabric, with cut or zigzag, tubular fabric, face to face and most importantly it can be adapted to any special spread the customer may need.

The wide range of options go from the one with support bar to the one with double band folding cradle:

The support bar is indicated for spreading big rolls with non-elastic or paper material.
The single travelling band cradle is design to spread any kind of fabric.
The double travelling band cradle is specially appropiate for delicate and elastic fabric.
The double travelling band folding cradle makes easy the loading of the roll and is appropiate for elastic fabrics.

TECHNICAL CHARACTERISTICS

• Equipped with robotic technology.
• Automatic check control system.
• Speed variation from 0 to 100 metres/minute.
• High-speed cutting variation.
• Feed by highly sensitive infra-red sensor.
• Intelligent detector at end of stack with return to load point.
• Automatic spread height detector.
• Machine driven by four-wheels.
• Software program to connect the zigzag with cut.
• Feeding system by “cradle”, a single conveyor belt.
• One piece conveyor belt system that prevents marking the fabric and problems caused by loose threads falling between rollers on multiple conveyor belt system.
• Automatic threading and unthreading.
• Fabrics rewinding to remove faulting or colour variation.
• Device to spread the other side of the fabric roll.
• Programmed feeding.
• Control panel with colour digital touch screen.
• Digital touch screen with parameter and information of functions.
• It can perform normal, programmed and scale spreads.
• Self-adjusting brakes ramp according to spread of machine.
• Adjustable acceleration.
• Safety brake in case of power failure.
• Maximum roll weight recommended: 100kg.
• Maximum diameter of the roll: 60cm.
• Maximum height of the spreading: 22cm.
• Maximum height for manual loading: 1.40mts.
• Power consumes: 2.1kw.

LINEA PRO OPTIONS

• Remote EWON connection for technical assistance
• Spreading in zigzag.
• Spreading with adjustable high speed cuts with or without mobile clamp.
• Program to count meters per roll, working time and total meters per spread.
• Spreading in tubular fabric roll; or in book-folded.
• Double feeding for roll spreading.
• Roll support by traditional bar.
• Intelligent control handle.
• Double belt.
• Double belt “folding cradle”.
• Additional programming for number of lays and number of lengths.
• Fast roll loader.
• Smooth, air blowing, conveyor and vacum tables
• 3 different types of transfer table for machine: manual, manual on rails and motorised on rails.
• Rails and operator’s platform.

Autex Goliat is the automatic spreading machine for heavy rolls, with versions for 300kg, 500kg and 1000kg rolls. Supplied with a built-in “cradle”, a single
conveyor belt across the useable width of the machine. It can unroll
any type of fabric quickly and naturally preventing marks on delicate
fabrics caused by the partial tension from conventional multiple belt
systems.
Goliat complies with strict EU safety standards.

TECHNICAL CHARACTERISTICS

• Versions for 300kg, 500kg and 1000kg rolls available.
• Equipped with robotic technology
• Automatic check control system.
• Speed variation from 0 to 100 metres/minute.
• High-speed cutting variation.
• Feed by highly sensitive infra-red sensor.
• Intelligent detector at end of stack with return to load point.
• Automatic spread height detector.
• Machine driven by four-wheels.
• Software program to connect the zigzag with cut.
• Feeding system by “cradle”, a double conveyor belt.
• One single conveyor belt system that prevents marking the fabric and problems caused by loose threads falling between rollers on multiple conveyor belt system.
• Cradle with double conveyor belt.
• Automatic threading and unthreading.
• Fabrics rewinding to remove faulting or colour variation.
• Device to spread the other side of the fabric roll.
• Tension Free System. Spread elastic fabrics without tension.
• Programmed feeding.
• Automatic feeding.
• Colour touch screen control panel
• It can perform normal, programmed and scale spreads.
• Self-adjusting brakes ramp according to spread of machine.
• Adjustable acceleration.
• Safety brake in case of power failure.
• Maximum height of the spreading: 22cm.

GOLIAT OPTIONS

• Remote EWON connection for technical assistance.
• Autex.com Communication System.
• Spreading in zigzag.
• Spreading with adjustable high speed cuts with or without mobile clamp.
• High speed spreads in zigzag cut.
• Program to count meters per roll, working time and total meters per spread.
• Spreading in tubular fabric roll; or in book-folded.
• Double feeding for roll spreading.
• Book folder tray for open and tubular fabric
• Roll support by traditional bar.
• Intelligent control handle.
• Fast roll loader.
• Smooth, air blowing, conveyor and vacuum tables
• 3 different types of transfer table for machine: manual, manual on rails and motorised on rails.
• 2 different types of transfer table for spreads: manual and motorised.
• Rails and operator’s platform.
