With our laying-out and cut-off devices you can trim and cut textiles and similar materials to the nearest millimeter without material wastage, technically perfect, easily and precisely. The laying-out and cut-off devices are manufactured individually for your table width and work effortlessly due to their belt-lifting device with a maintenance- free sliding or roller guide on both sides.

Our automatic laying-out and cut-off devices work at the touch of a button. They are equipped with a maintenance-free and robust asynchronous motor and will allow you to trim and cut to the nearest millimeter without material wastage. Their mechanic construction and advantages are same as for the manual devices. They are ideal for saving time on larger material widths.

Your brief overview

The laying-out and cut-off devices consist of a cutting device and an end-rail device.

Depending on the task and manufacturing process, we recommend the following cutting devices:

• cutting device ST-S
  The low-cost, manual cutter
• cutting device ST-SA
  The automatic cutting device with continuously variable speed control
• cutting device ST-BH
  The extra smooth-running manual cutter
• cutting device ST-AH-F
  The automatic cutter with an integrated lifting drive and a long and successful track record
• cutting device K
  The robust automatic cutting device for two-sided cutting


These can be combined with end-rail devices of the following model types:

• end-rail device ST-Sen/product/c/laying-out-and-cut-off-devices/p/st-s-1/
  The low-cost, end-rail device
• end-rail device ST-BH
  The smooth, manual end-rail device, available in a mobile version on request
• end-rail device ST-AH-W
  The end-rail device with a motorised lifting drive

Our electric and pneumatic shears ensure precise cutting of various materials, e.g. textiles, foils and synthetic materials. We offer you a great variety of types for cutting heights up to 15 mm. Our all-rounders are easy to handle, powerful in their performance and neat in the execution of a task.

Depending on the model, more versions and a large range of accessories are available.

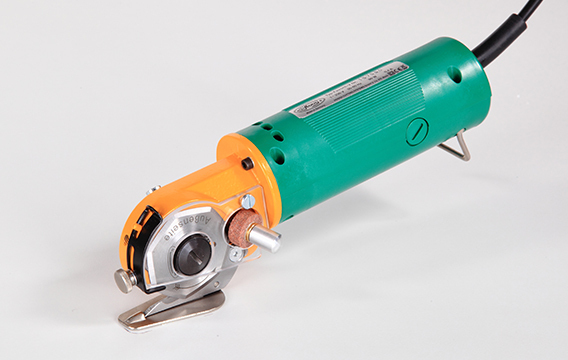

f.e. Favorit-V – fast and strong

For heavy fabrics, leather and similar materials.

Advantages

• faster and stronger than Favorit but same design and weight
• handy grip diameter only 50 mm
• simple operation by push-button bar
• cutting head made of light metal
• sturdy construction with long-life and high-quality motor
• simple carbon brush and blade change
• integrated grinding device for permanently sharp blades
• high level of safety due to adjustable finger guard and fixed blade cover
• maintenance-friendly due to external gear unit lubrication
• precise cuts due to easy guidance by means of a sliding foot (removable if desired)

Technical data

• Voltage: 1 ~ 230V
• Power: 90 Watts
• Blade diameter: 50 mm
• Blade speed: approx. 3100 rpm
• Cutting speed: approx. 487 m/min
• Cutting height: max. 10 mm
• Weight: 800 g
• Dimensions: approx. 230 × 65 × 75 mm

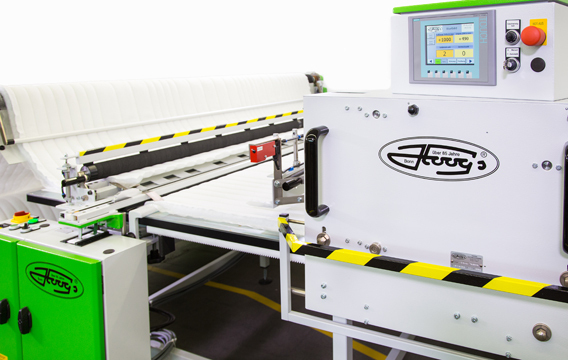

The pulling, cutting and laying-out device to complement the well-known Hoogs laying-out and cut-off equipment is highly convincing with its advanced technology and a high rationalisation effect.

Successful applications include the entire garment industry, upholstered furniture, the mattress industry, and all kinds of manufacturing.

Type ZSL and ZSL-A

High rationalisation through advanced technology.

ZSL-A

• Pulling, cutting and laying-out device – automatic version
• includes the following features in addition to those of the manual ZSL:
• electronic length and item pre-selection
• continuously variable pulling speed, up to 1 m/s
• driven by a robust 3-phase motor
• clamping beam with automatic height adjustment by photo sensor

Facts & Advantages

• operation by just a single person, regardless of the material width
• simple operation and handling
• precise laying-out due to stacking up to 20 cm
• precise material transfer provided by the self-adjusting clamping bar
• time saving due to the return during the automatic cut-off
• stable, distortion-free movement ensured by double rack guide
• simultaneous withdrawal of several textile webs (depending on textile)
• suitable for all tables with a thickness of 20-40 mm and a table overhang of at least 70 mm from the frame
• required table width = material width + 20 cm

Options

• additional pneumatic roller clamp at the material transfer station
• simultaneous withdrawal of several rolls (depending on material)
• air-cushion table for the easy handling of the roll after cutting
• colour and/or pattern recognition
• longitudinal cuts possible in conjunction with our BN-T-K unrolling machine

Additional features

• For material storage, we recommend our unrolling cradle and unrolling machines

Energy supply

• 3 ~ 400 V, 50–60 Hz
• 3 ~ 230 V, 50–60 Hz
• compressed air, cleaned and oiled, 6 bar
• other voltages available on request

Our round-knife machines are proper power packs and perform precise cuts up to a cutting height of 45 mm for almost all textiles and synthetic materials.

They are supplied in three different series, are available in a lot of special versions and make pleasant and straightforward working possible at any time.

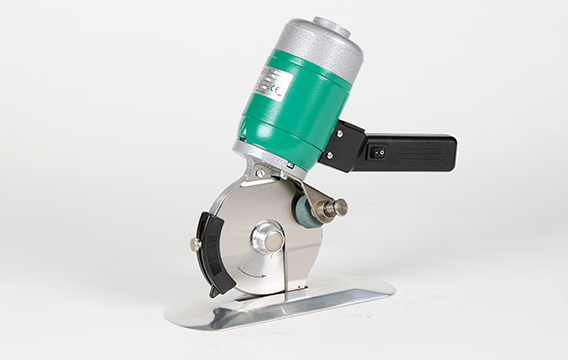

f.e. USM-G – handy and powerful

For almost all textiles and synthetic materials.

Advantages

• cuts almost all textiles and synthetic materials
• high cutting performance due to a high-torque DC motor
• always remains sharp with integrated grinding device
• high level of safety provided by adjustable finger guard and fixed blade guard
• easily maintained – with central lubrication
• base plate with easy-moving rollers
• compact dimensions, low weight

Versions

USM–G (middle)
Special version designed for hard materials, includes:

• special blade holder
• intermediate plate, centred on the cutting line
• wear-resistant bronze helical gear with axial needle roller bearings
• four-bow HSS blade

Additional features

• extension handle, 80 cm in length, pluggable, with or without a switching device
• push button instead of latching on/off switch
• bronze helical gear for higher loads
• ST gliding foot for use with the USM-G in our ST aluminium guide rails
• ball-bearing roller foot for use with our 80/20 steel guide rail for a particularly smooth movement and precise guidance
• steel guide rail SFS-90 for straight guidance of the machine over longer distances, to be used in conjunction with the standard base plate

Technical data

• Voltage: 3 ~ 230 V, 50 Hz; 1 ~ 110 V, 60 Hz; other voltages on request
• Power: 260 Watts
• Blade diameter: 110 mm
• Blade speed: approx. 820 rpm
• Cutting speed: approx. 285 m/min
• Cutting height: max. 30 mm
• Weight: approx. 2.5 kg
• Dimensions: approx. 310 × 110 × 250 mm

Our integrated machines are used in many automation solutions of leading mechanical engineering companies and take on the “cutting” sector with perfection. Machines with a high blade rotation speed for precise cutting, fast endurance runners with more cutting height, machines for two-sided cutting with direct drive, longitudinal cutters and machines for special materials right up to modules that can be integrated.

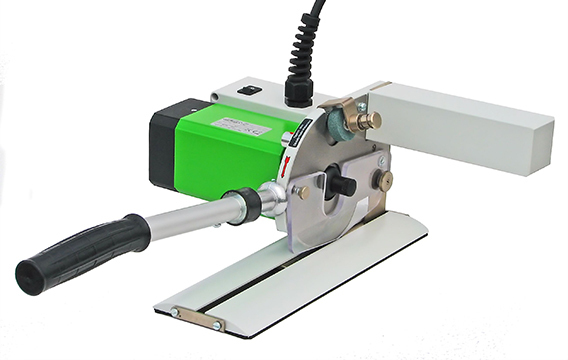

f.e. ST-6000 – the fast continuous runner

NEW: Increased cutting height with reduced machine weight! Direct blade drive for high speeds.

Advantages

• direct drive with high blade speed (2800 rpm)
• high cutting speed (about 1144 m/min) for clean, quick cutting
• always remains sharp due to integrated grinding device
• high level of safety provided by adjustable finger guard and fixed blade guard
• simple maintenance due to direct drive
• cut-off for automatically switching off upon reaching the end positions
• features a sliding foot for our ST guide rails

Additional features

• front and rear handles
• handle lengths: 13, 25, 50, 75, 100 and 125 cm
• folding mechanism for handles
• ball-bearing rolling foot for use with Hoogs steel guide rail 80/20
• IP 44 (optional)

Technical data

• Supply voltage: 3 ~ 400 V, 50–60 Hz; 3 ~ 230 V, 50–60 Hz
• Power: 200 W
• Blade speed: 2800 rpm
• Blade diameter: 130mm
• Cutting speed: 1144 m/min (69 km/h)
• Cutting height: 21mm
• Weight: 6.30 kg
• Dimensions:approx. 345 × 175 × 151 mm
