The NBR units, the newborn from RODELLA TECHNOLOGIES, are
automatic sewing units for decorative and assembly sewing on leather
articles, Shoes and automotive application. These units have a different
approach for the solution of the uniform stitch quality when sewing
complex patterns in multiple directions.

In fact, instead of the rotation of the whole sewing head in this case RAM
opted for an original solution to rotate only the needle bar.
The NBR units have indeed a new developed hook group that, granting
the same quality standard as HR model, reduce the size and the masses.
Combination of these two items results, under the same conditions, in a
higher rotation speed by cornering and therefor increase productivity
particularly executing complicated sewing patterns.
RAM sewing units feature also other devices that concur to obtain a
superior quality stitch, such us:

• Electronic thread tension operated by stepping motors;
• Presser foot high controlled by program in order to comply to
  different material thickness during the sewing process;
• “CLUTCH” device that holds the bobbin thread underneath the
  throatplate to secure a perfect appearance from the first stitch;
• Selectable thread trimmer feature to cut both threads or only
  needle thread to facilitate following operations.

TECHNICAL SPECIFICATIONS

• Thanks to the 360 degrees rotation of the needle needlebar and hook align, within few milliseconds, in the most suitable direction in order to grant a perfect stitch formation and high speed in the corners
• Sewing head with independed axes.
• Working area: 1000 X 600 mm.
• Max speed: 2000/2500 p/min.
• Height adjustment of the foot electronically controlled and programmed according to the thickness of the sewing material.
• Automatic lifting and lowering of sewing head during the movements without sewing with the possibility of excluding it or inserting it from the program where necessary.
• Large capacity rotary hook.
• Programmable tension of the thread.
• Stitch-length: 1 -12 mm.
• Clutch: unique system for thread clamping of the needle thread underneath the throatplate. This function, independently selectable, guarantees a perfect and clean start of sewing.
• Programmable thread cutter system allows to exclude the cutting of the bobbin thread, directly from the program, to ensure a perfect stitch formation from the beginning as well us to save time by subsequent operations.
• USB port for data transfer.
• Easy to use control panel with touch screen.

HR1601TH **

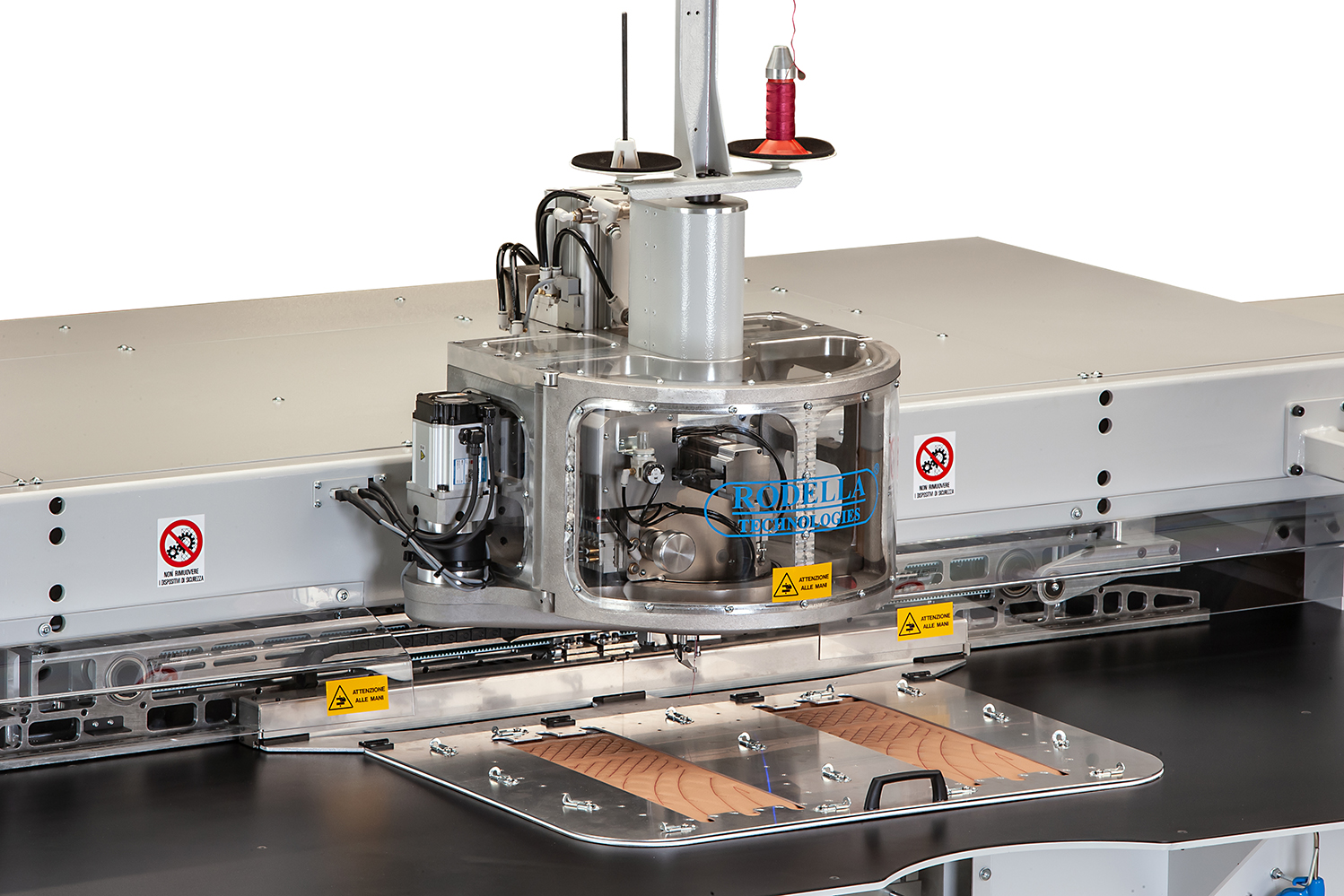

Programmable computer controlled sewing unit with 360° rotating sewing head for decorative stitching or for joining operations on bags, leather goods, footwear and special applications from RODELLA TECHNOLOGIES

TECHNICAL SPECIFICATIONS

• Thanks to the 360 degrees rotation of the sewing head, needle and hook align, within few milliseconds, in the most suitable direction in order to grant a perfect stitch formation and high speed in the corners
• Sewing head with independed axes.
• Working area: 1000 X 600 mm.
• Max speed: 2000/2500 p/min.
• Height adjustment of the foot electronically controlled and programmed according to the thickness of the sewing material.
• Automatic lifting and lowering of sewing head during the movements without sewing with the possibility of excluding it or inserting it from the program where necessary.
• Large capacity rotary hook.
• Programmable tension of the thread.
• Stitch-length: 1 -12 mm.
• Clutch: unique system for thread clamping of the needle thread underneath the throatplate. This function, independently selectable, guarantees a perfect and clean start of sewing.
• Programmable thread cutter system allows to exclude the cutting of the bobbin thread, directly from the program, to ensure a perfect stitch formation from the beginning as well us to save time by subsequent operations.
• USB port for data transfer.
• Easy to use control panel with touch screen.
• Thread-break detector.

RC1601TH **

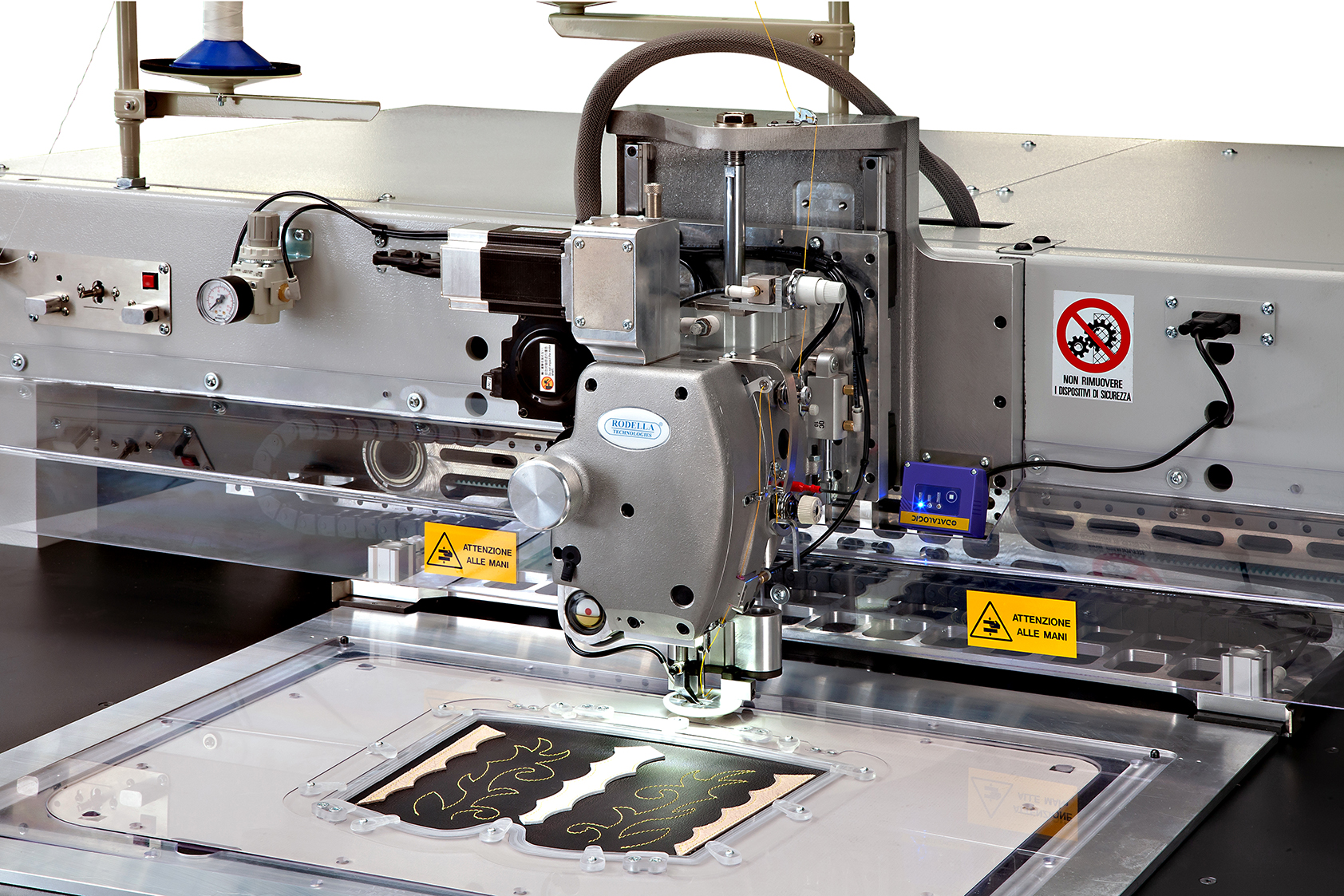

Programmable computer controlled sewing unit with fixed head for footware, leather goods and special applications from RODELLA TECHNOLOGIES

TECHNICAL SPECIFICATIONS

• Sewing head with independed axes.
• Working area: 1000 x 600 mm.
• Max speed: 2000/2500 p/min.
• Height adjustment of the foot electronically controlled and programmed according to the thickness of the sewing material.
• Automatic lifting and lowering of sewing head during the movements without sewing with the possibility of excluding it or inserting it from the program where necessary.
• Large capacity rotary hook.
• Programmable tension of the thread.
• Stitch-length: 1 -12 mm.
• Clutch: unique system for needle thread clamping underneath the throatplate. This function, independently selectable, guarantees a perfect and clean start of sewing.
• Programmable thread cutter system allows to exclude the cutting of the bobbin thread, directly from the program, to ensure a perfect stitch formation from the beginning as well us to save time by subsequent operations.
• USB port for data transfer.
• Easy to use control panel with touch screen.
• Thread-break detector.
• Connection to the LAN.

** This unit also available as RC641TH for sewing area of 600 x 400 mm.

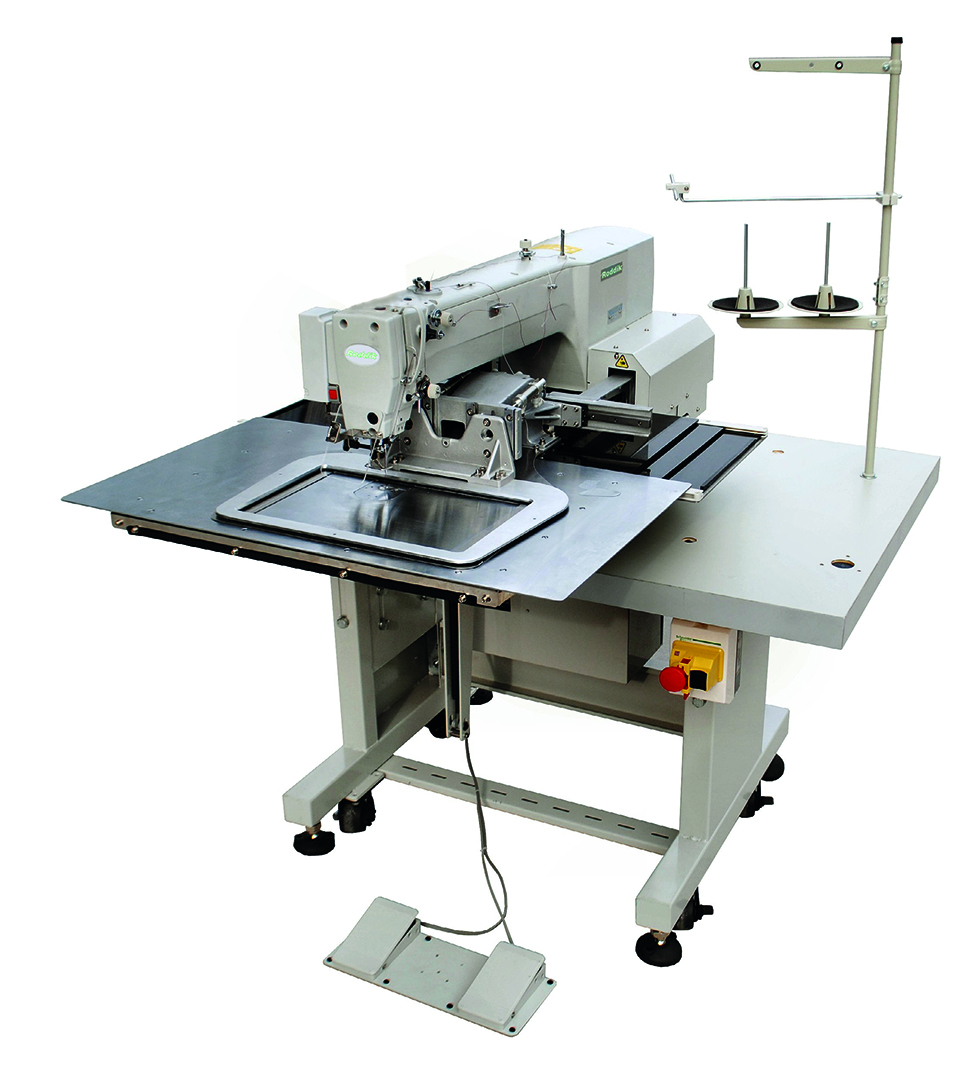

Selection of Automatic programmable lockstitch sewing machines, controlled by stepping motors on the X and Y axis. Equipped with large capacity oscillating hook, automatic thread trimmer and clamping system. Available in wide range of sewing area:

MU-311 Sewing Area 130 mm. x 100 mm.

MU-326 Sewing Area 220 mm. x 100 mm.

MU-342 Sewing Area 300 mm. x 200 mm.

MU-352 Sewing Area 450 mm. x 300 mm.

MU-362 Sewing Area 600 mm. x 400 mm.

Technical Specification

• Large capacity oscillating hook
• Sewing area: 130 x 100 mm (MU-311), 220 x 100 mm (MU-326), 300 x 200 mm (MU-342),  450 x 300 (MU-352), 600 x 400 (MU-362).
• Maximum Speed: 2.700 ppm.
• Stitch-length: from 1,00 mm to 12,70 mm.
• USB port for data transfer and built-in memory for sewing programs.
• Power supply: 220V single phase.
