About us
Quitérios is a Portuguese company with more than 40 years experience in designing and manufacturing solutions for electrical and network distribution - distribution boards, vdi and racks - for household and commercial buildings.
As a market leader in its sector, with a wide network of customers that include the top electrical material wholesalers around the world, Quitérios has built its growth upon rigor, trust, dedication and loyalty to its partners.
Through its R&D department, centred on searching and developing new, complementary or alternative solutions, Quitérios has the most contributions to technological improvements of its sector.
As an ISO 9001 Quality standard and NP4457 Innovation standard certified company, all processes, products and services obey to international quality regulations and standards.
Being present in many countries, Quitérios' products are the market’s choice when It comes to quality, functionality, aesthetics and cutting-edge technology.
Corporate video:
https://www.youtube.com/watch?v=8E2BCGUoAM0
Our product groups
Keywords
- DISTRIBUTION BOARDS
- ELECTRICAL ENCLOSURES
- TELECOMMUNICATION SOLUTIONS
- VDI DISTRIBUTION ENCLOSURES
- RACKS
Our Products

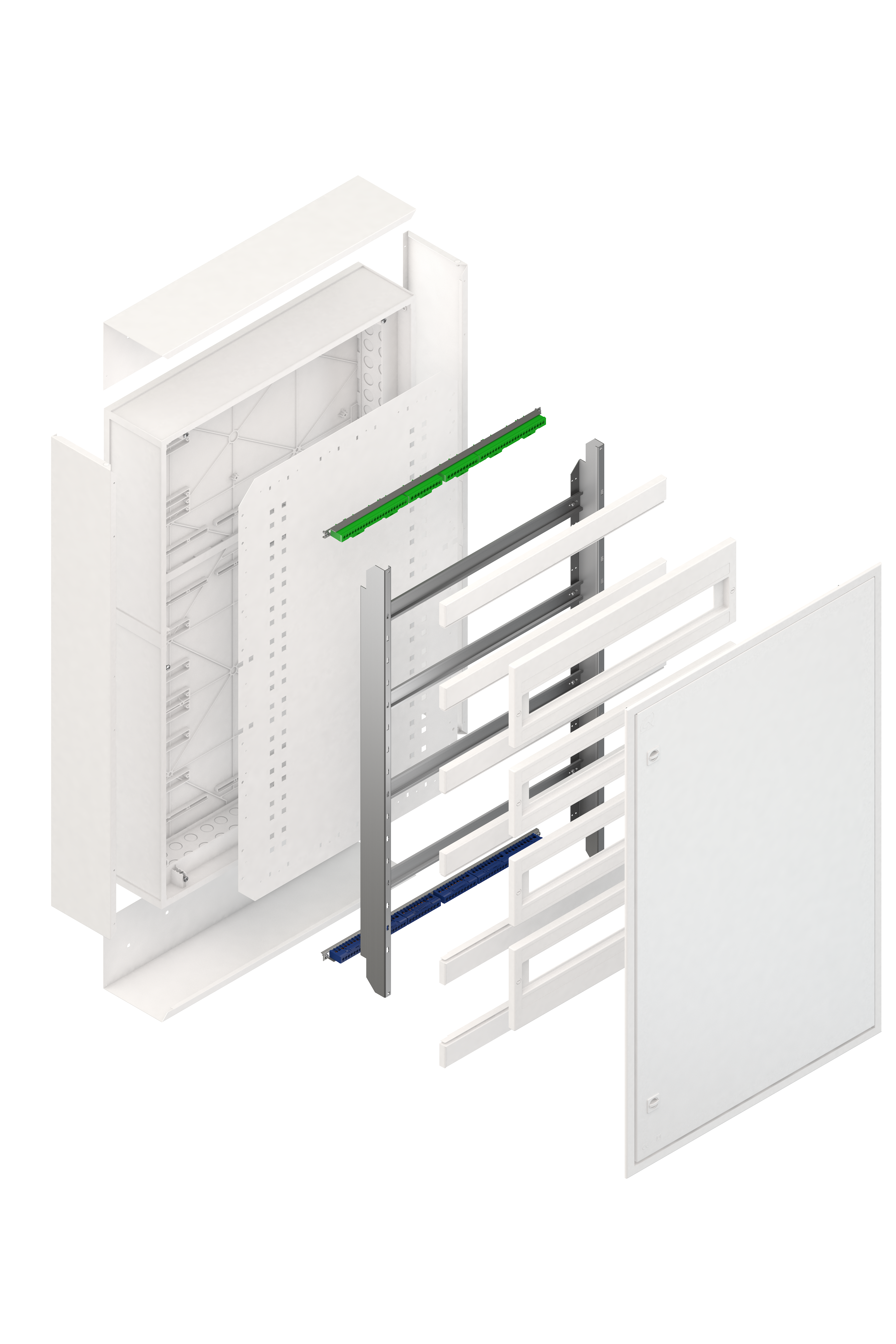

SAFETYMAX®
CLASS II INSULATION DISTRIBUTION BOARDS, WITH ALUMINUM FRAME AND DOOR
- 16 up to 168 DIN rail modules capacity
- 90mm, 125mm and 200mm depths
- Surface (SM) and Flush Mounted (FM) applications
- Surface Mounted enclosures with 750, 875 and 1000mm height manufactured with a metal cover - Mechanical Reinforcement - with IK09
- Metallic Reinforcement Kit – optional metallic cover for D125 surface mounted (SM) enclosures with 375 and 500mm height
- Perfect horizontal or vertical assembly between enclosures
- IP54; IK07
- In 125A
- Wide range of accessories
For further information about, check out our website: https://www.quiterios.com/en/products/11/safetymax
SAFETYMAX®PRO
DISTRIBUTION BOARDS WITH INCREASED SPACE BETWEEN DIN RAILS
- 80, 96, 100 and 120 DIN rail modules capacity
- With blind panels to vary the distance between DIN rails
- 125mm and 200mm depths
- Class II Insulation enclosures with aluminum frame and door
- Flush (FM) and Surface Mounted (SM) applications
- Surface Mounted (SM) enclosures with aluminum cover
- Metallic mounting plate
- IP54; IK09
- In 250A
For further information, check out our website:
https://www.quiterios.com/en/products/31/safetymax-pro

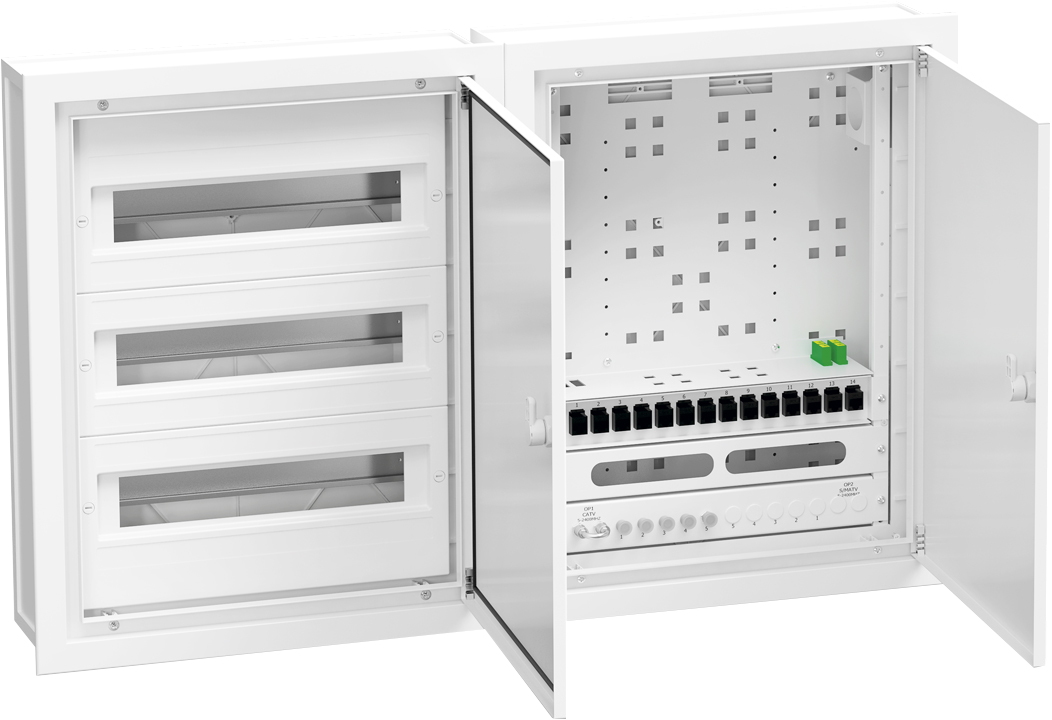

VDI_RACK®
RACK TYPE SOLUTIONS FOR VOICE, DATA AND IMAGE DISTRIBUTION FOR HOUSING AND COMMERCIAL INSTALLATIONS
- 90mm and 125mm depth enclosures
- Surface (SM) and Flush Mounted (FM) applications
- Plastic enclosure with aluminum frame and door and metallic mounting plate, earth busbar and schuko socket
- Wide range of panels and accessories for Coaxial; Copper Pair and Optical Fiber
- IP42; IK07
- Same design as the SAFETYMAX® distribution boards, resulting in a perfect assembled solution
For further information, check out our website:
https://www.quiterios.com/en/products/56/vdi_rack-rj_flex

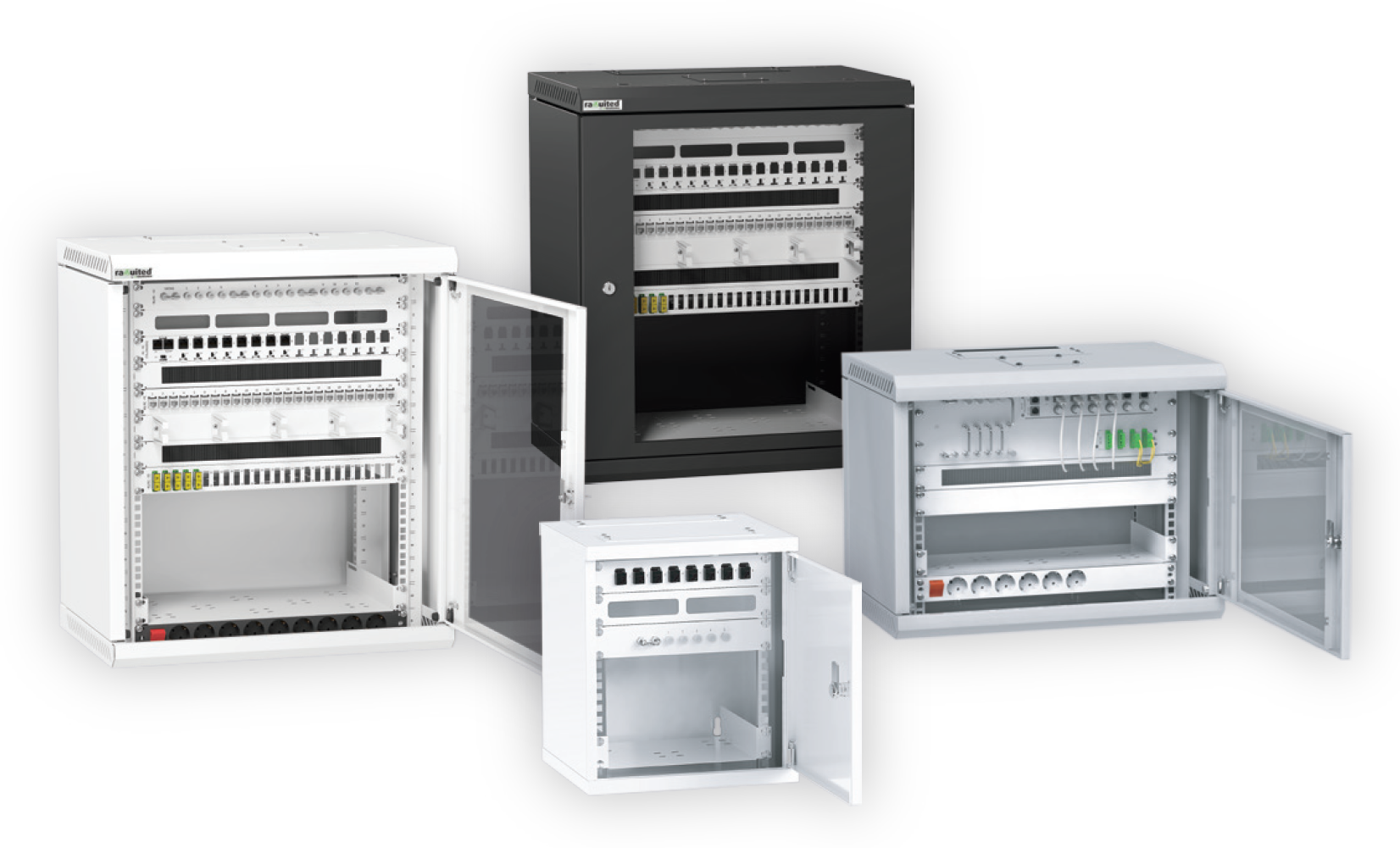

RAQUITED®
19’’ and 10’’ Rack solutions available in White, Grey and Black with wide range of Coaxial; Copper Pair and Optical Fiber panels and accessories.
19’’ Racks:
- Wall mounted with 6, 8, 13 and 17U
- Floor mounted with 24U
- Reversible front door with tempered glass
- With passing cable panels
- Ventilation through natural convection and possibility of forced ventilation
- IP20
10’’ Racks:
- Wall mounted with 6U
- Reversible metallic door
- Ventilation through natural convection
- IP20
For further information, check out our website:
https://www.quiterios.com/en/products/23/raquited

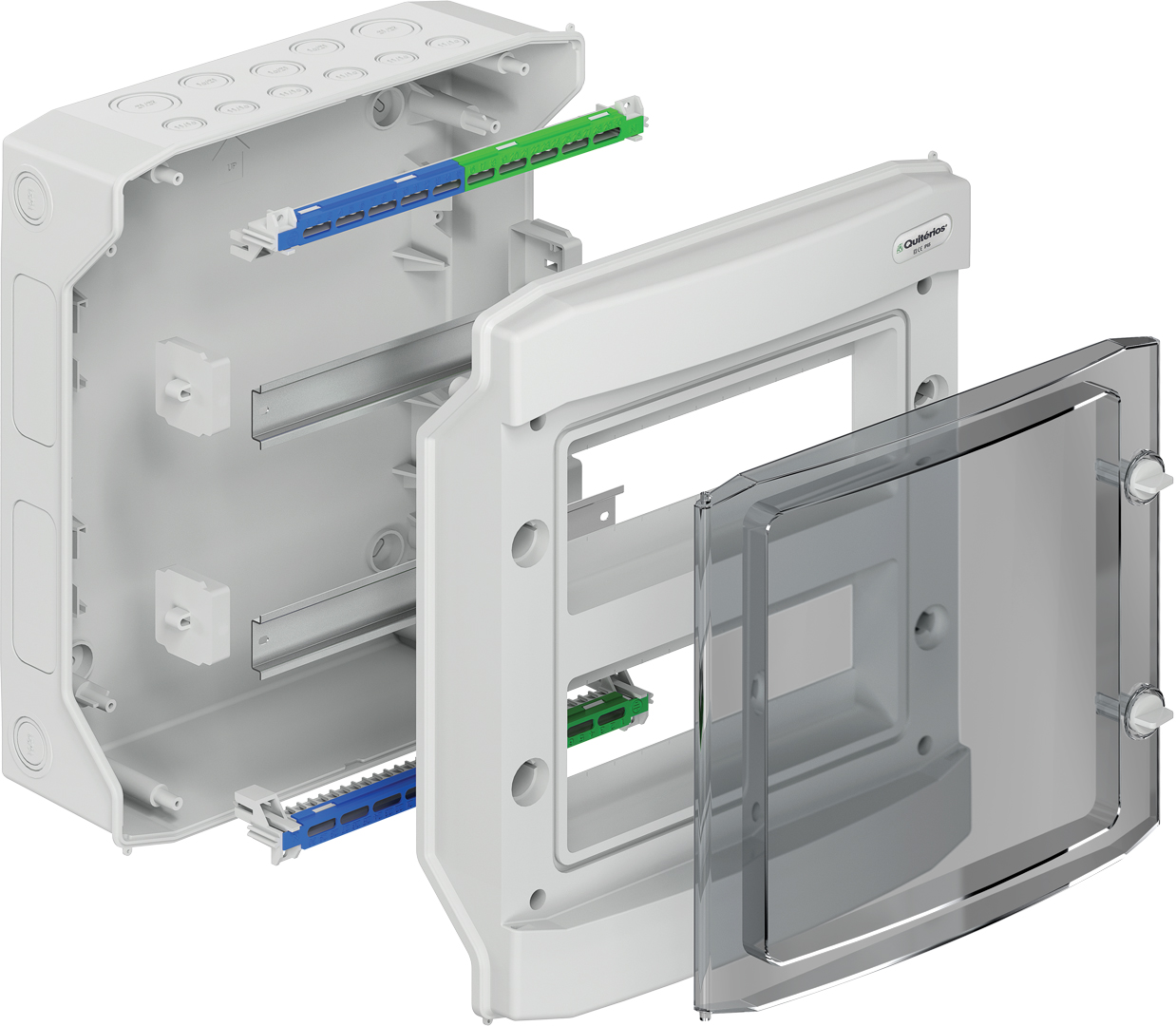

MONDEGO®
HERMETIC DISTRIBUTION ENCLOSURES
- 4, 6, 8, 12, 18, 24, 36 and 48 modules
- Surface mounted application
- Class II Insulation
- IP65; IK08
For further information, check out our website:
https://www.quiterios.com/en/products/18/mondego
