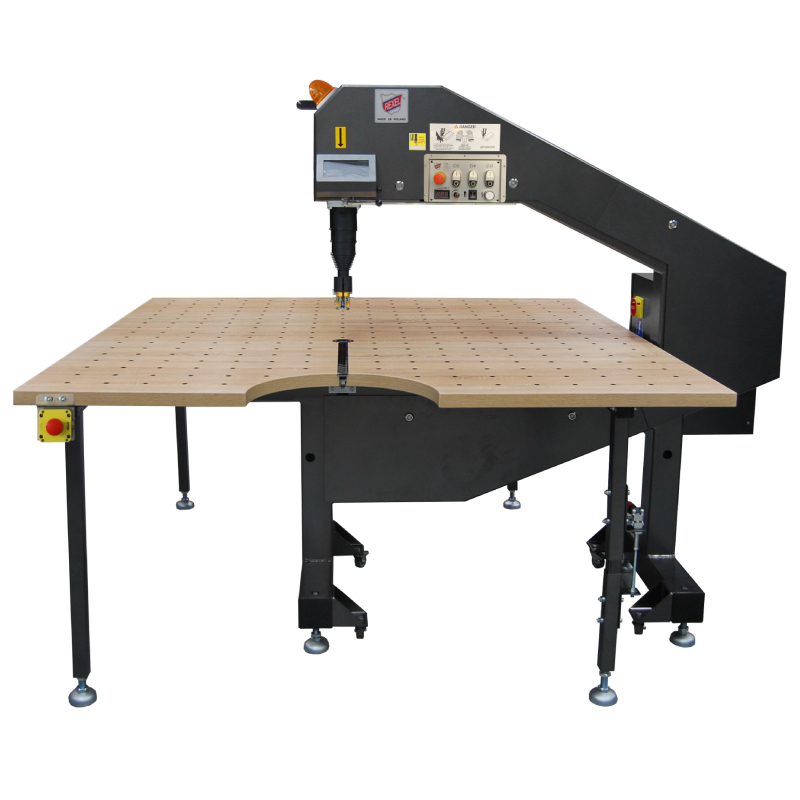

Band knife machines R1000/R750 are versatile tools for cutting medium-sized stacks of material.

Key features:

- The band knife machine is a powerful and versatile tool for cutting fabric, leather, cardboard, upholstery foam, rubber or paper.
- Any band knife can be used with this device (straight, convex, concave or toothed).
- Smooth or airflow-equipped tabletops.
- Each machine is equipped with a knife sharpener and a dust-collecting tray covered with transparent casing.
- A solid construction made of powder-coated steel.
- An liftable telescopic cover allows for a quick adjustment of the cutting height with a push of a button.
- All machines are equipped with a mechanical band catcher and the panels are protected with end switchers.
- (Optional) vacuum system for removing dust and material pieces during cutting.
- (Optional) adjustable manual positioner (side stop) with a scale for cutting stacked pieces of material
(R1250, R1150, R1000 and R750 only).

Specifications:

Model:    R1000
Tabletop dimensions:    1800 x 1800 mm (70.85" x 70.85")
Overall dimensions (LxWxH):    2250 x 1800 x 1850 mm (88.6" x 70.85" x 72.85")
Cutting height:    250 mm (9.84")
Band length:    4250 mm (167.3")
Arm length:    1000 mm (39.35")
Knife speed:    0-18 m/s (59 ft/s)
Guide wheels quantity:    3
Voltage (optional 230 V / 50 Hz):    400 V / 50 Hz
Motor Power (optional 2,2 kW):    1.5 kW
Inverter for speed variation:    Yes
Tabletop with air-cushion or smooth:    Yes
Sharpening device:    Yes
Operating light:    Yes, LED lights
Mechanical bandknife catcher:    Yes
Vacuum system (optional):    Yes
Touchscreen control panel:    No
Control panel with buttons:    Yes
Castors for easier installation:    Yes
Measuring stop PR-3 (optional):    Yes
