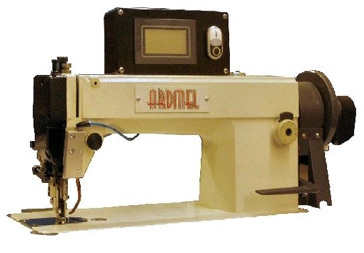

The SMS-600 is used to construct garments, Lingerie, Sportswear and fashionwear without thread creating a clean and beautiful finish ultrasonically cutting the edges to achieve perfectly no-fray finish. The machine achieved a “Queens Award in Innovation” and is unique to any other ultrasonic welding equipment. The H192 has all the handling capabilities as a normal sewing machine with the exception that there is no thread or needle. Garment seams and curves are easily created giving more versatility that the average wheel machine. The walking foot and positioning pin hold material in place. The special attachments are specially designed to enable to operator to use this machine on all types of materials including cotton blends and stretch materials. The range of attachments allows for numerous applications and can be done on one machine.

Provides totally watertight impermeable seams
Seams are less bulky
Uses minimal allowances creating flatter seams
Improves comfort levels on next to skin garments
Cleaner cosmetic appearance.

Attachments available:

Tape or Adhesive applicator: Applies an adhesive or a tape to the ultrasonically cut edge in one process.

Self-tape applicator: This little device will use the main material of the garment and transform it into a bonded tape applying it on the edges of the product in one easy operation. No need for multiple machines.

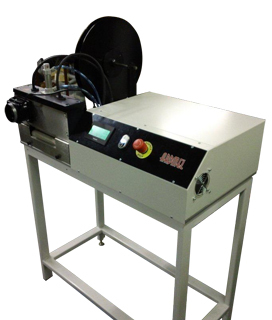

The Ardmel HMI Strip cutter is one of the most robust and reliable cutting system on the market today. The heavy duty unit is capable of handling the toughest of cutting tasks including industrial textile materials with extreme accuracy. The drive and control unit will accept any of the interchangeable cutting heads which are all pneumatically driven giving years of use with minimal maintenance.

Webbing, Seatbelts, Hook & loop, zippers, cords, ropes, tubing, tapes, industrial belting, elastic cords, ribbons, labels, felts, coated fabrics rubbers.

The 6” feed block is capable of multi feed. The top and bottom drive rollers are driven and spring clamped to avoid slippage. The motor has a “soft start” to prevent the fabric being pulled to hard at the beginning of the process thus reducing the risk of slippage or over stretching. With exceptional cutting accuracy within±1mm over a maximum length of 100mtrs. Feed speed is 36meters/Min with an inch speed for loading of 5mtrs/minute.

The machine is capable of cutting multi rolls at one time up to 6” wide. There is an option to go wider with our 9” cutting blade if required.

nput of data, e.g. Length, temperature etc. is entered through the HMI Panel which is designed for easy programming.

Optional attachments:

Heavy Duty Hot knife
Heavy Duty Cold guillotine knife
Angle Hot knife
Photo Detector
Slack Feed Unit
Mechanical End Detector
