The pulling, cutting and laying-out device to complement the well-known Hoogs laying-out and cut-off equipment is highly convincing with its advanced technology and a high rationalisation effect.

Successful applications include the entire garment industry, upholstered furniture, the mattress industry, and all kinds of manufacturing.

Type ZSL and ZSL-A

High rationalisation through advanced technology.

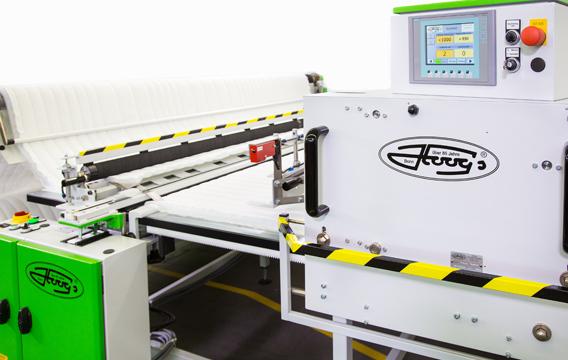

ZSL-A

• Pulling, cutting and laying-out device – automatic version
• includes the following features in addition to those of the manual ZSL:
• electronic length and item pre-selection
• continuously variable pulling speed, up to 1 m/s
• driven by a robust 3-phase motor
• clamping beam with automatic height adjustment by photo sensor

Facts & Advantages

• operation by just a single person, regardless of the material width
• simple operation and handling
• precise laying-out due to stacking up to 20 cm
• precise material transfer provided by the self-adjusting clamping bar
• time saving due to the return during the automatic cut-off
• stable, distortion-free movement ensured by double rack guide
• simultaneous withdrawal of several textile webs (depending on textile)
• suitable for all tables with a thickness of 20-40 mm and a table overhang of at least 70 mm from the frame
• required table width = material width + 20 cm

Options

• additional pneumatic roller clamp at the material transfer station
• simultaneous withdrawal of several rolls (depending on material)
• air-cushion table for the easy handling of the roll after cutting
• colour and/or pattern recognition
• longitudinal cuts possible in conjunction with our BN-T-K unrolling machine

Additional features

• For material storage, we recommend our unrolling cradle and unrolling machines

Energy supply

• 3 ~ 400 V, 50–60 Hz
• 3 ~ 230 V, 50–60 Hz
• compressed air, cleaned and oiled, 6 bar
• other voltages available on request
