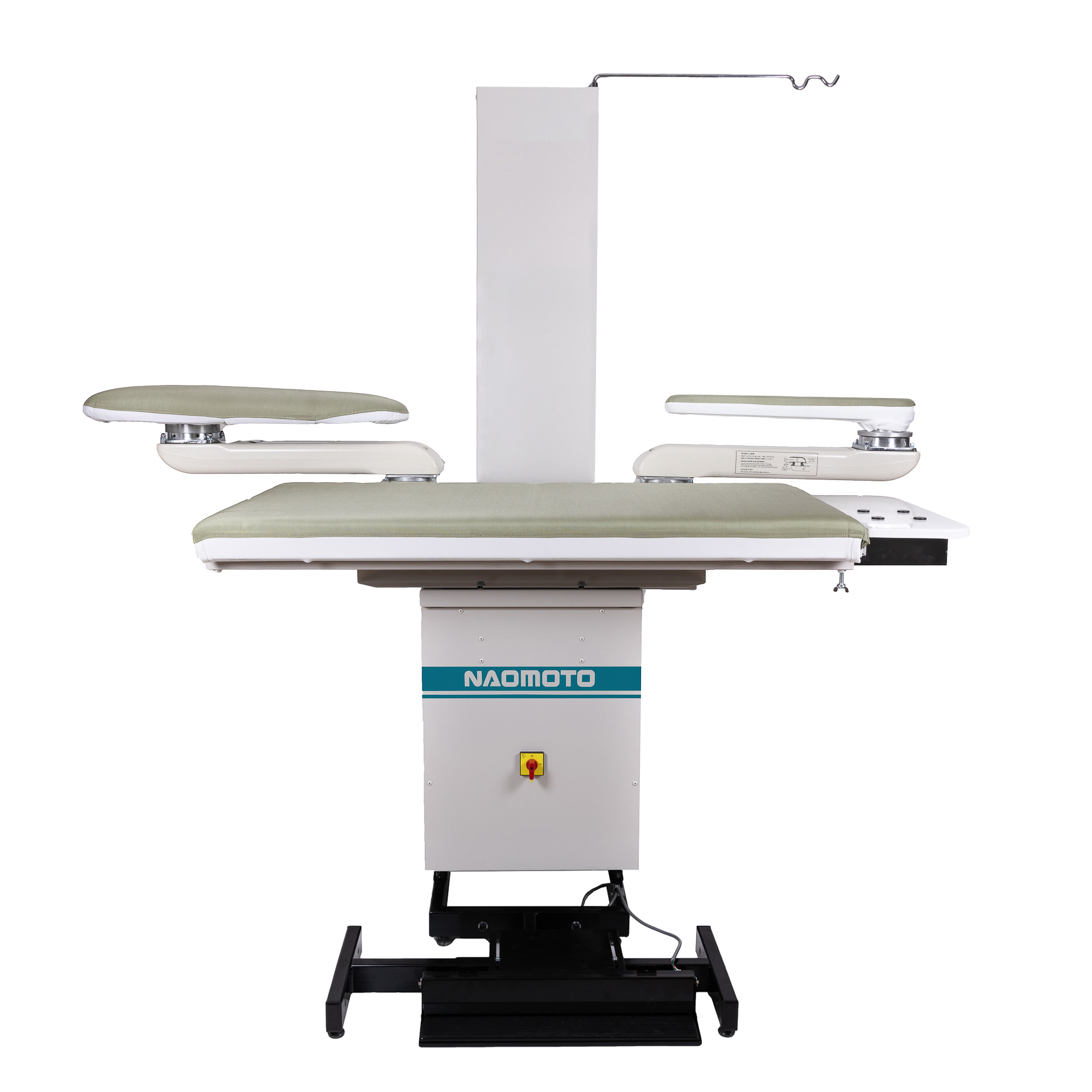

The rectangular ironing table FBJ is modular and asembled on wheels and adjustable feet.

It's not heated and is equipped with an automatic electromechanical blow-suction exchange.

The aspirator is incorporated and the height adjustable pedal is practical and ergonomic.

The basic model allows you to mount 1 to 2 arms and to fix U-shapes with right or left point, rectangular shapes or shapes with central attachment.

The control of the suction power is manual.

The machine is equipped with a separate control of the suction and blowing on the main shape and on the arm.

The model presented includes a rectanuglar main shape measuring 120x65 cm and two ironing bucks (Universal Ironing Buck M-1720 And Sleeve Ironing Buck M-210N).

The coating materials are top-quality, durable and washable.

The ironing table is easy to install and maintain, also ensuring significant energy saving.

Main Features:

• Blowing
• Suction
• Height adjustable
• Automatic height adjustable system of the ironing board

Technical Features Of Rectangular Ironing Table FBJ-SE:

• Voltage: 380V
• Wattage: 740W
• Main shape dimensions: 120x65 cm
• Height adjustment range: 10 cm

Naomoto is pursuing improvement in all aspects of the ironing process, from ensuring better working conditions to efficient energy consumption.

By changing the central steam piping system to individual steam generator units, you can achieve a series of benefits.

• Increase Flexibility

Faster changes in equipment layout and production process

Quick responses to small production runs

• Improve the Working Environment

Reduce the temperature of the workplace

Create safer and more comfortable conditions for employees

• Decrease Energy Waste

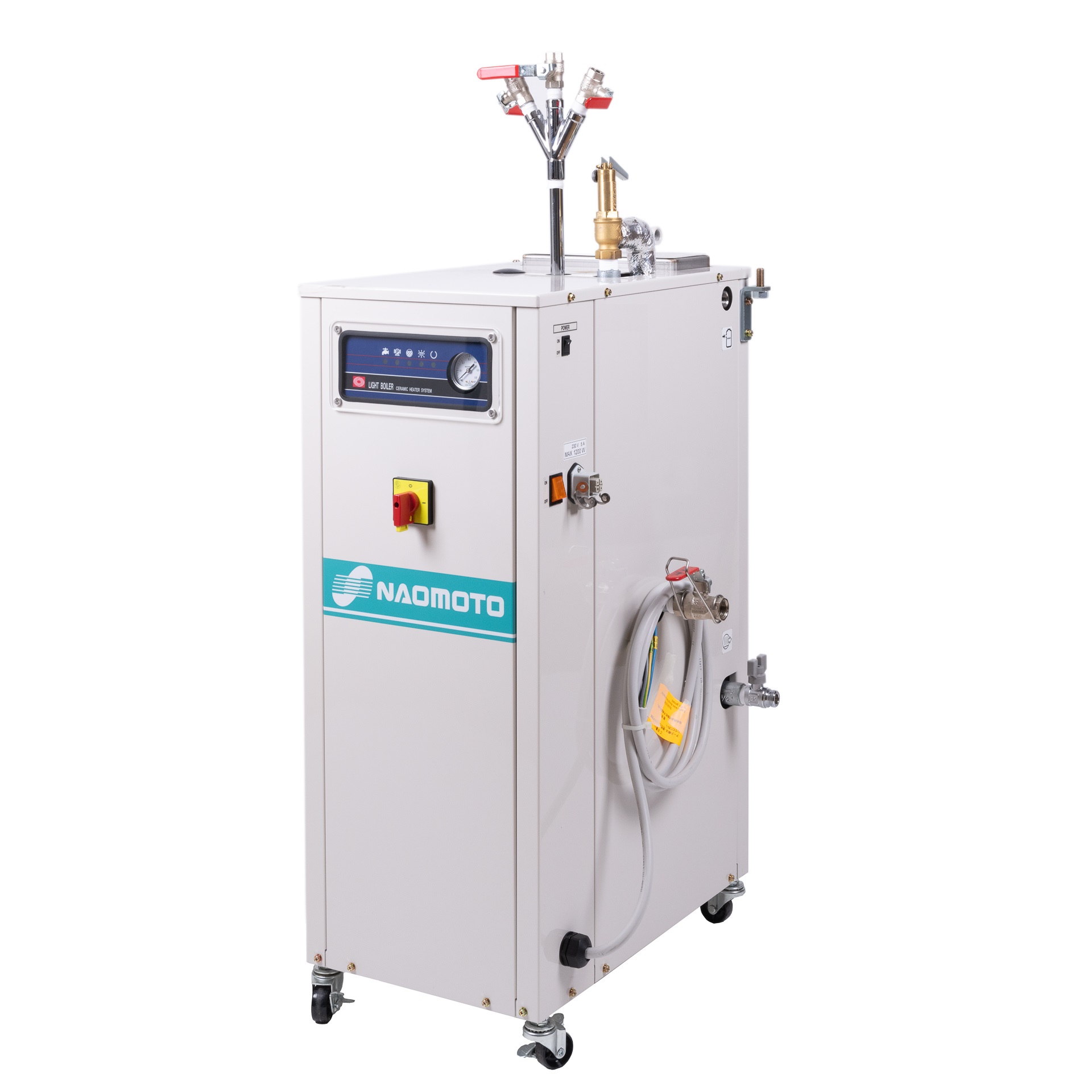

Technical Features Of Electric Steam Generator NBC-1600E-NE:

• Voltage: 380V 3P 50Hz 3+N+T
• Electric power: 7,2 kW
• Pressure: 3 Bar
• Temperature: 131 °C
• Steam production: 10,8 kg/h
• Dimensions: 55x5x45x5x129 cm
• Weight: 52 Kg

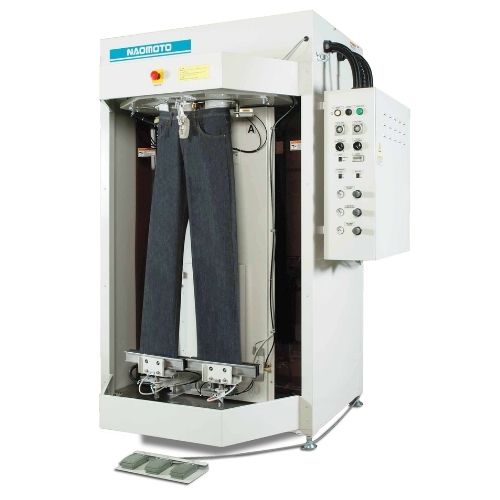

The double carousel topper NMF-230NE is equipped with a closed finishing room that can keep temperature and steam high, so as to ensure a higher quality of the result.

It’s possible to work with different types of garments, such as elastic pants,jeans, cotton pants and shorts. It also adapts to differet sizes, thanks to the leg length and hip adjustments options

It guarantees comfortable and clean working conditions, thanks to the use of hot air recycling and to the simple loading system.

Technical Features:

• Voltage: 220V 1P
• Hot air blowing engine power: 0,75kW
• Steam consumption: 40-50Kg/h 4Bar
• Dimensions: 1145 w x 1585 l x 1965 h  cm
• Weight: 430Kg

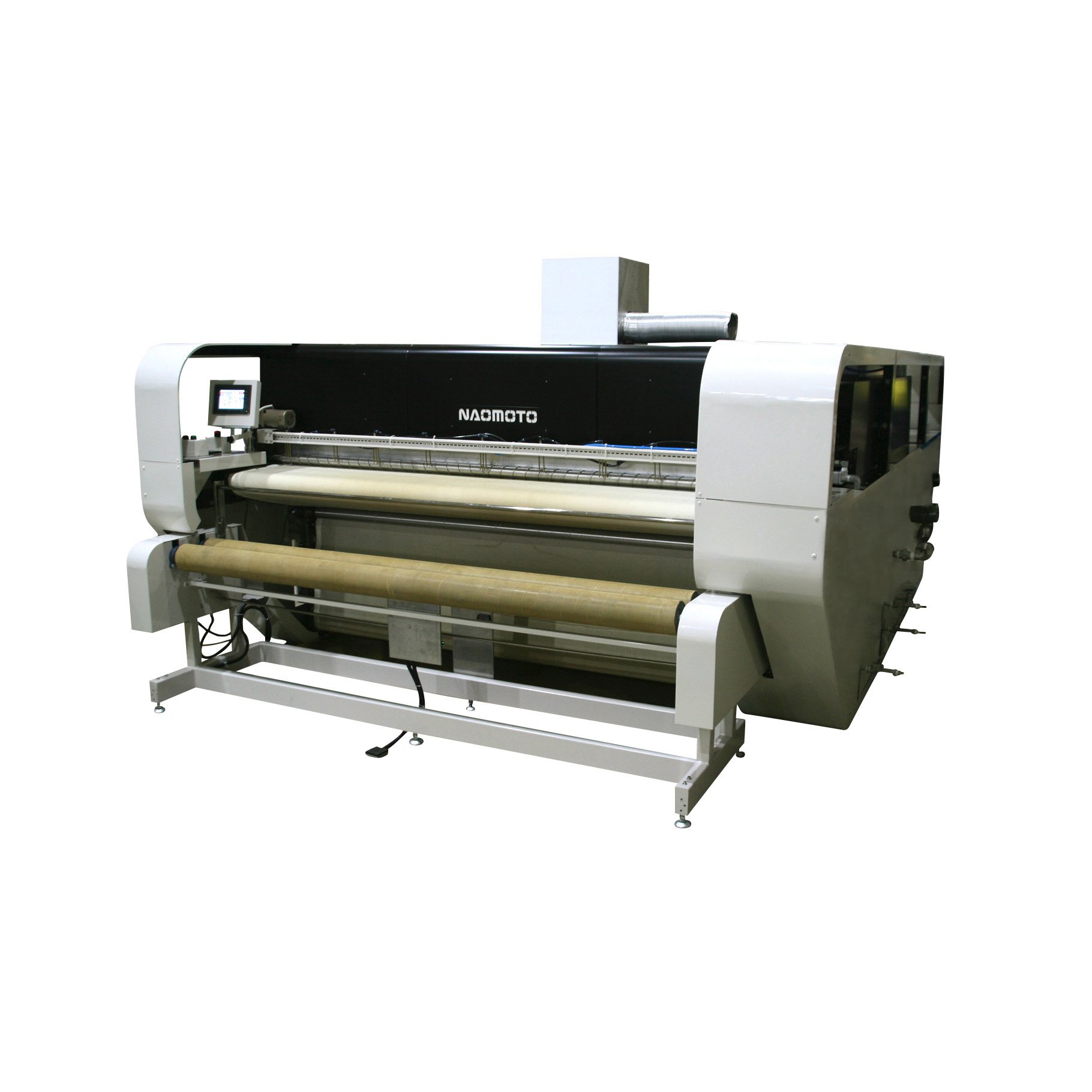

The sponging machine NSW-2200R is equipped with:

• Computerized control
• Adjustable speed

Suitable for fabric and knit treatment operations.

The machine is also equipped with:

• N. 1 pc | Touch screen control panel
• N. 1 pc | Textile feeding supporting board suitable for one operatore
• N. 1 pc | Antistatic bar
• N. 1 pc | Vacuum hood to optimize and regain all the steam used in the steaming station
• N. 1 pc | Fabric coils unwinder
• N. 1 | Steaming station
• N. 1 | Vibration zone
• N. 1 | Single hot air drying station
• N. 1 | Vacuum cooling station
• N. 1 | Antistatic zone
• N. 1 | Folding area

Technical Features of Sponging Machine NSW-2200R:

• Voltage: 380V 3N
• Total electric capacity: 27,39 kW
• Effective width: 220 cm
• Conveyor belt speed: from 0 to 10 m/min

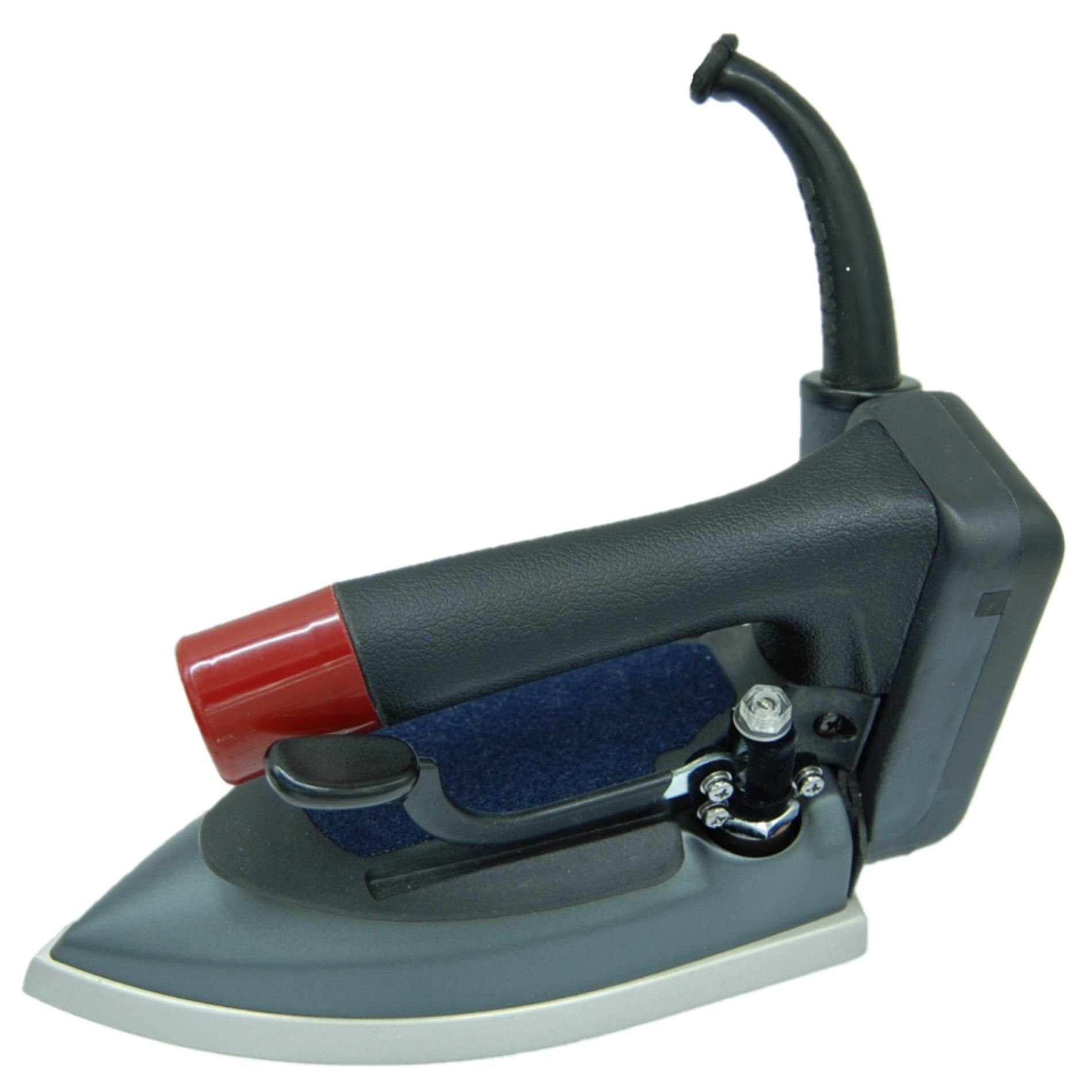

Choose CDP-420 for its adaptability and easy operation

• Versatile

The plate temperature ranges from 110°C to 210°C, making it suitable to work with even the lightest fabric

The lever allows for precise steam flow control

The plate is the perfect shape for each stage of the ironing process, from seam to final pressing

• Ergonomic

Naomoto standard of comfort ensures an ergonomic open handle

The balanced weight reduces fatigue

The heat shield protects from accidental burns

• Equipped with an innovative 2 in 1 hose system

Prevents condensation in the iron chamber

Speeds up steam response time

Starts/stops steam flow instantly
