The VETRON 5700 // 5710 was designed as a quality assurance system for safety-related seams in the automotive industry.
It guarantees the precise control and documentation of seams, which serve as the nominal breakage point of the reference seam when the side airbag is triggered. Each stitch, top and bobbin thread in the docu seam is measured by the docu system and monitored according to the corresponding specifications. The 5700 // 5710 is thus an important link in quality assurance within the production chain.

• flatbed sewing machine with triple transport
• sensor for needle thread tension and closed-loop control of needle thread tension
• skip stitch detection
• camera for monitoring needle thread cone
• camera for monitoring bobbin thread cone
• needle thread cone conver and cover recognition
• bobbin thread cone cover and cover recognition
• camera for reading barcodes or QR-codes on left side of sewing head
• camera for monitoring inserted bobbin in hook
• electronic edge guide with integrated photo cell for recognition of start/stop of docu seam
• label printer
• different electronic access levels available
• color touch screen control panel with integrated SBC for easy programming and graphic visualisation of docu seam
• seam files storable in gateway and connective by ethernet or wifi
• import/export seam files by USB port
• import/export seam programs
• eye guard with sensor
• tilt sensor
• hook cover sensor
• knee switch
• RFID reader for operator identification
• NEW seam designer - direct on touch panel

VETRON STARTING THE CLASSIC SERIES

The VETRON 4000 series has been designed as a modern,fully equipped, mechanical industrial sewing machine for use in medium to heavy-duty applications and complements the portfolio with a classic industrial sewing machine in addition to the VETRON 5000 series.

With an exceptionally high stitch quality, it is perfectly suited for topstitching work in the visible area, as well as for assembling seams for use in automotive and upholstery production.

Equipped with a thread trimmer, thread clamp for a clean seam beginning. Switchable, second tension, second stitch length and top feed stroke. Recallable via the switch bar in the arm of the machine. With the built-in LED sewing light and an integrated touch control panel in the machine arm, the VETRON 4000 series offers all the features of a modern, classic industrial sewing machine.

Other features include are a powerful main drive and low-noise, low-vibration operation due to aluminum arm and head covers.

The sewing gauge parts set of the VETRON 4000 series is identical to the VETRON 5000 series and can therefore be used as an original part in VETRON quality for all VETRON series. As a result, the VETRON 4000 series fits easily into the VETRON range and is an ideal operating resource and reliable partner.

• Very high stitch quality for top-stitching work in the visible areas and for assembly seams

• Reliable machine with robust quality

• Powerful direct-drive motor

• Stitch type 301

• Integrated touch control panel

• Selective with big vertical hook (bobbin diameter 26 mm) or extra large hook (bobbin
  diameter 32 mm)

• Large claerance under the machine arm (355 x 130 mm)

• Max. stitch length 12 mm

• Max. top feed stroke 9 mm

• Max. clearance under the sewing feet 20 mm

• 2 adjustable stitch lengths

• 2 adjustable top feed strokes

• Electrically switchable additional thread tension

• Hook protection through overload clutch

• Integrated LED sewing light

• Manual VR button

• Knee switch (option) free verifiable to retrieve the 2nd stitch length, 2nd top feed stroke or
  2nd thread tension

Hotair welding machines are typically used to strengthen and seal seams in the textile and leather industry. Compressed air is heated up to several hundred degrees Celsius by electricity and is blown onto the tape coated with thermoplastic glue...

...the Innovation
ENERGY SAVING OF MORE THAN 90%

The innovation of the VETRON hotair welding machine is based on the development of a new air heater in combination with consistent reduction of heat losses and a newly designed air nozzle. The air supply can be stopped at any time without damage of the heater. The nanoporous thermal insulation and the optimization of the air channel are also reducing energy losses.
The new designed nozzle optimizes the energy transfer to the tape. As a result, the required amount of hot air could be reduced to a fraction.
Comparison tests revealed a possible ENERGY SAVING OF MORE THAN 90% compared to previous systems!

• ENERGY SAVING OF MORE THAN 90% compared to previous systems
• No air noise in pause mode
• Slant from back
• Heating power 700 Watt
• All welding parameters can be programmed and thus reproducibility
• Up to 199 programs can be created
• With integrated, programmable tape pulling and tape feeding device
• Integrated tape cutter
• 25 mm hot air nozzel with integrated tape pre-heating (patent pending)
• With adjustable puller heating
• Tape width from 5-25 mm adjustable
• Adjustable puller pressure
• Programmable welding speed, separatly adjustable for upper an lower puller wheel
• Programmable welding temperature
• Lower puller wheels selectively made from steel or silicon
• Puller wheels 26 mm width (other widths on request)
• Puller wheels diameter 45 mm

• All control elements including bobbin winder, electronic hand wheel and reverse button are placed at the head module in the user`s direct fi eld of view
• Integrated, electric bobbin winder (continuous winding process even when machine stops)
• Integrated and dimmable sewing light
• Extremely solid construction of housing
• Tilt-assistant for easy cleaning and maintenance
• Optimized hook lubrication with fresh oil
• Integrated motor
• Noise-reduced machine features
• No use of compressed air
• PROGRAMMABILITY
• All machine settings are programmable and storable: stitch length, sewing feet pressure, top feed stroke, needle thread tension, clearance under the sewing feet …
• Stored production settings allow for fast and precise set-up of the machine
• On demand authorization limits access to machine settings
• User identifi cation by USB dongle
• Network connection for central administration of machines (optional)
• Easy to understand and intuitive programming concept
• Teach-in mode for recurrent sewing processes
• DYNAMIC PROCESS
• Permanent measurement of material thickness thereby dynamic adjustment of needle thread tension, top feed stroke, sewing speed and sewing feet pressure
• Automatic top feed stroke adjustment at cross seams
• Stitch-in-stitch bar tacking

TECHNICAL DATA

• 1- or 2-needle lockstitch with triple transport
• Max. stitch length 12 mm
• Max. top-feed-stroke 9 mm
• Max. clearance under the sewing feet 20 mm
• Automatic top-feed-stroke adjustment
• Controlled needle thread tension
• Automatic adjustment of presser foot pressure
• Electric driven bobbin winder
• Electronic back-tack lever
• Automatic thread cutter for threads up to 10/3; thread ends ~13 mm
• Selective with big hook

(bobbin diameter 26 mm) or extra large hook
(bobbin diameter 32 mm)


CLEARANCE UNDER THE ARM

• 5000 Standard size > 350×130 mm
• 5010 Standard size > 350×130 mm

The VETRON 5700 // 5710 was designed as a quality assurance system for safety-related seams in the automotive industry.
It guarantees the precise control and documentation of seams, which serve as the nominal breakage point of the reference seam when the side airbag is triggered. Each stitch, top and bobbin thread in the docu seam is measured by the docu system and monitored according to the corresponding specifications. The 5700 // 5710 is thus an important link in quality assurance within the production chain.

• flatbed sewing machine with triple transport
• sensor for needle thread tension and closed-loop control of needle thread tension
• skip stitch detection
• camera for monitoring needle thread cone
• camera for monitoring bobbin thread cone
• needle thread cone conver and cover recognition
• bobbin thread cone cover and cover recognition
• camera for reading barcodes or QR-codes on left side of sewing head
• camera for monitoring inserted bobbin in hook
• electronic edge guide with integrated photo cell for recognition of start/stop of docu seam
• label printer
• different electronic access levels available
• color touch screen control panel with integrated SBC for easy programming and graphic visualisation of docu seam
• seam files storable in gateway and connective by ethernet or wifi
• import/export seam files by USB port
• import/export seam programs
• eye guard with sensor
• tilt sensor
• hook cover sensor
• knee switch
• RFID reader for operator identification
• NEW seam designer - direct on touch panel

VETRON STARTING THE CLASSIC SERIES

The VETRON 4000 series has been designed as a modern,fully equipped, mechanical industrial sewing machine for use in medium to heavy-duty applications and complements the portfolio with a classic industrial sewing machine in addition to the VETRON 5000 series.

With an exceptionally high stitch quality, it is perfectly suited for topstitching work in the visible area, as well as for assembling seams for use in automotive and upholstery production.

Equipped with a thread trimmer, thread clamp for a clean seam beginning. Switchable, second tension, second stitch length and top feed stroke. Recallable via the switch bar in the arm of the machine. With the built-in LED sewing light and an integrated touch control panel in the machine arm, the VETRON 4000 series offers all the features of a modern, classic industrial sewing machine.

Other features include are a powerful main drive and low-noise, low-vibration operation due to aluminum arm and head covers.

The sewing gauge parts set of the VETRON 4000 series is identical to the VETRON 5000 series and can therefore be used as an original part in VETRON quality for all VETRON series. As a result, the VETRON 4000 series fits easily into the VETRON range and is an ideal operating resource and reliable partner.

• Very high stitch quality for top-stitching work in the visible areas and for assembly seams

• Reliable machine with robust quality

• Powerful direct-drive motor

• Stitch type 301

• Integrated touch control panel

• Selective with big vertical hook (bobbin diameter 26 mm) or extra large hook (bobbin
  diameter 32 mm)

• Large claerance under the machine arm (355 x 130 mm)

• Max. stitch length 12 mm

• Max. top feed stroke 9 mm

• Max. clearance under the sewing feet 20 mm

• 2 adjustable stitch lengths

• 2 adjustable top feed strokes

• Electrically switchable additional thread tension

• Hook protection through overload clutch

• Integrated LED sewing light

• Manual VR button

• Knee switch (option) free verifiable to retrieve the 2nd stitch length, 2nd top feed stroke or
  2nd thread tension

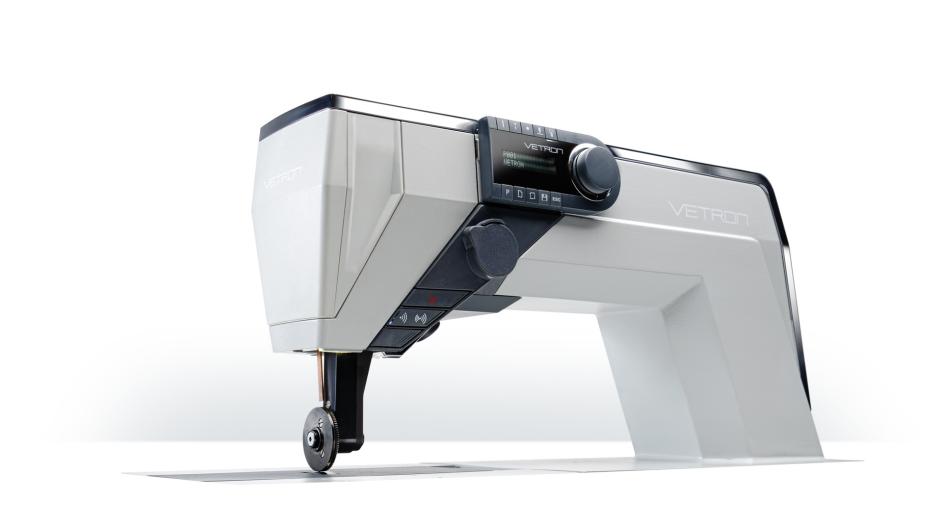

Hotair welding machines are typically used to strengthen and seal seams in the textile and leather industry. Compressed air is heated up to several hundred degrees Celsius by electricity and is blown onto the tape coated with thermoplastic glue...
