This machine is a unique fully automated system that allows to fold and sew the sleeve plackets to the sleeves without them needing to be pre-ironed.



It is equipped with two patented MAICA sewing heads – right and left side –  which allow to prepare the next piece while the machine is sewing the current one.



The laser helps the operator to perfectly place and align striped fabrics. A vacuum system, along with blades, will fold it to make it ready for the stitching part.



The length of the sleeve placket can be adjusted using the same jigs, but different widths will make you change it for a new one. The width can go from 15mm to 30mm.



Two stackers will follow the process and move the finished pieces to the back of the unit.



Everything is controlled by the computer so that the operator only needs to feed the machine.



This option allows us to act directly from Italy if a problem is detected using only the Wi-Fi.

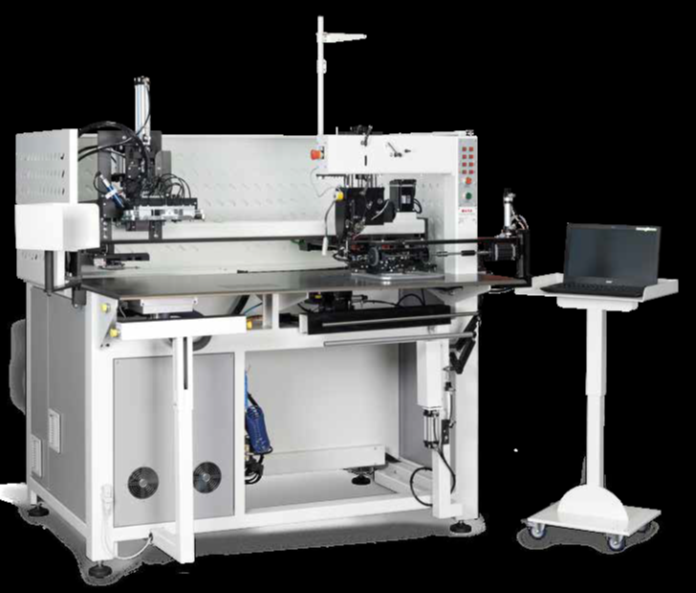

The automated unit UAM 01 with its patented MAICA sewing head was created to attach the pocket, which does not need to be pre-ironed.
The speed of the machine can be used for big productions, but can be adapted to small productions as well.

The lasers help the operator to perfectly place and align the fabric.

A vacuum system, along with blades, will fold it to make it ready for the stitching part. The flexibility of the machine also allows to sew labels and collar bones.

Furthermore, a new application allows the machine to sew the task with its flap at the same time. Thanks to a 35 x 35cm area, this unit is the perfect solution for working clothes tasks attachments. The program containing all the shapes and pockets data can be changed directly on the machine,
which is controlled by the computer. This option allows us to act directly from Italy if a problem is detected, using only the Wi-Fi.
The cost of the jigs and its easy changeability makes this unit very flexible.

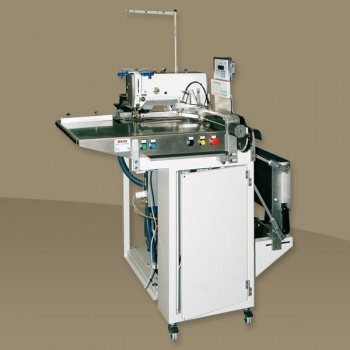

The MA 04 model was made to conduct the buttonholes operation faster than ever, thanks to its vacuum system making the placement and alignment of the fabric extremely easy. This machine continually sews the buttonholes with the help of an auto-moving system, allowing the operator to work on more than one machine at the same time.



A program, accessible through a touch screen, has been added to allow to have different sized shirts and also different gaps between the buttonholes on one shirt. These options are possible thanks to a motorised conveyor feeding the machine with the shirt.



An automatic stacker at the end of the operation collects all the finished shirts.

This machine is a unique fully automated system that allows to sew collars and cuffs with a patented MAICA knotted stitch sewing machine. The pieces are also trimmed and stacked automatically.



This unit is controlled electronically by the computer, which means that the system allows any type of stitching with an automatic size change.



This option allows us to act directly from Italy if a problem is detected using only the Wi-Fi.



The new jigs for the new shapes can be easily changed and have minimum costs.



Plus, collars and cuffs are trimmed separately from the sewing phase, giving the possibility to have completely different cut and sewing lines, if needed.



The machine is flexible and gives different applications options (flaps, shoulder pads, …)

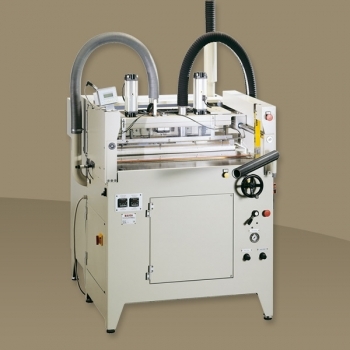

The 1005 unit will fold front and half sleeves, using a vacuum and a pressing system which allow complete precision on the entire length of the crease.



After placing the piece with the help of references points, the vacuum system will hold it in order for the operator to fold perfectly the remaining part. Please note that an adhesive system can be added to the machine, if needed. Then, a blowing system will help sending the shirt under the pressing plates for the creasing part.



The width can be adjusted – from 18mm to 70mm – as well as the length, that goes up to 900mm.



The cleaning of the suction plates is fast and easy.



The machine is also equipped with a stacker at the back, which helps the operator to not waste time after each cycle.
