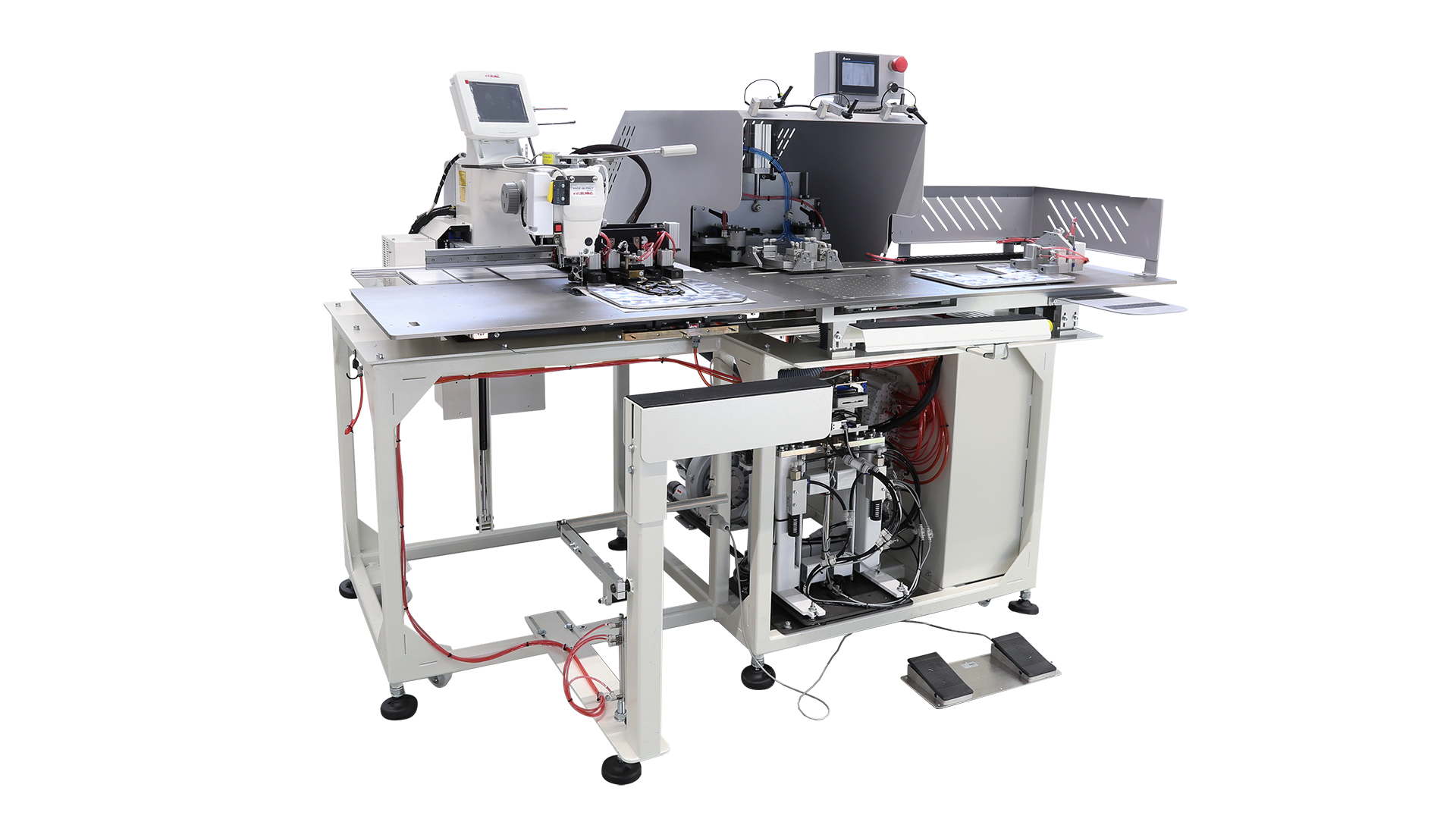

Vibemac model VM02 (single head) and VM02-DH (double head), automatic programmable pocket setter machines with folding group, are the most efficient solution on the market.

High productivity combined with excellent quality are the strengths of these automatic machines. The retractable inner clamp ensures high stitching quality across various fabrics. Its ease of use enables even non-expert workers to operate it without any effort.

Moreover, not needing a pocket creasing machine saves space and energy, boosting productivity instantly.

Custom pocket jigs can be made locally or shipped with sewing programs in a matter of days. Additionally, programming and program adjustments can be easily done directly on machine’s interface.

» New folding sysytem: it guarantees optimal results for all fabric types and pocket shapes, even in case of pockets with just 7/8mm of excess material, ensuring perfect quality results after washing

» Servo motors: for moving the fabric between the various work stations, to ensure high speed and precision

» Easy tranformation: the VM02 model can easily transform into the VM02-DH in just a few simple steps

TECHNICAL SPECIFICATIONS

• Max sewing speed: 2700 rpm
• Sewing area: 300 x 236 mm
• Productivity (regular medium sized pocket): 130 trousers/hour
• Power supply: 230V mono phase 50/60 Hz, 1.0 kW
• Air consumption: 0.6 L/cycle
• Air pressure: 5.5 bar

FEATURES

• Height of the presser foot managed by a step motor, programmable in the sewing cycle
• The sewing head features a shuttle hook allowing for sewing with thick upper threads or multiple threads simultaneously
• Quick change of jig managed by operator panel
• 3 laser pointers for fast and precise aligning of the material
• Worktop coated in SERIFLON (special surface treatment containing Teflon) which allows optimal sliding for all types of fabric
• Compact stacker design for optimal performance even during highspeed operations

OPTIONAL

• Looseness kit for allowance of the quarter panel
• Reinforcement under the quarter panel to strengthen the bartack of the pockets
• Protection barrier to ensure extra safety in working environment

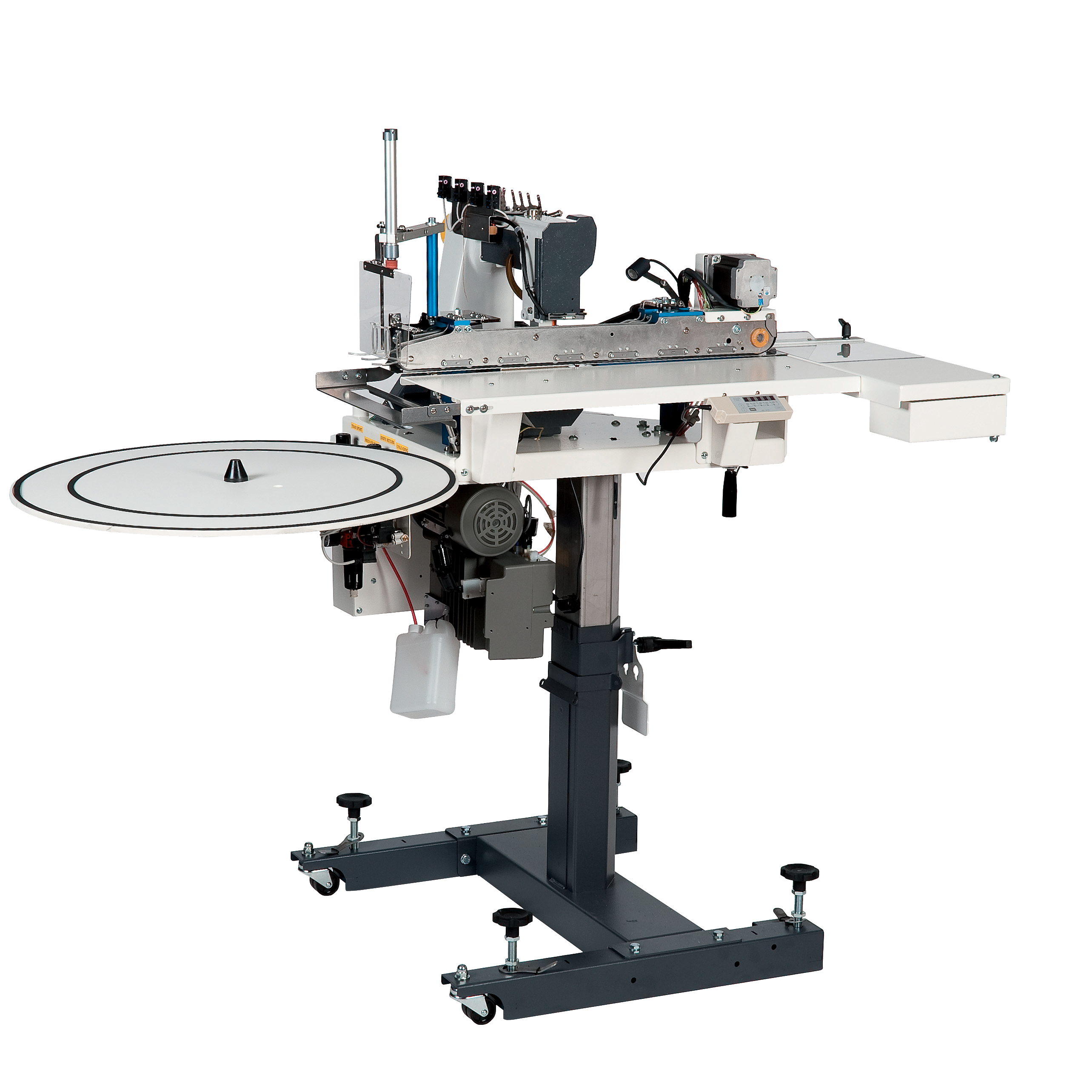

The automatic pocket hemming unit V700.1, 2 needle chain stitch is a flexible unit with a high level of efficiency and quality output. One unit can supply more sewing lines, following the concept of modular production and space maximization. If supplied along with the loader V070 it becomes fully automatic.

The unit V700.1 can perform an average production of 1800 up to 2000 pockets per hour. The innovative transport system allows the units to perform on many kind of fabric thickness, from light fabrics to denim and stretch materials.

»Innovative pneumatic system (patented): high productivity with no more wave effect or hem arching problems on denim fabric

»Adjustable folder: quickly adjust your pocket hem anytime to easily set up different styles according to your needs

»Programmable cut: the automatic cut at beginning and at the end is programmable with a specific control panel

»Loader LDR-01: when paired with the loader LDR-01, the units become fully automatic, eliminating the need for manual pocket loading

»Rotating storage disk: the disk can contain up to 600 pocket and while unit is working the disk full of pockets can be replaced in 5 seconds with an empty one (supplied optionally).

TECHNICAL SPECIFICATIONS

• Sewing Head: Vi.Be.Mac. 2 needle chain stitch
• Max Sewing Head Speed: 4000 rpm
• Sewing Machine Speed: 3600 rpm
• Stitch Length: from 0.9 to 5 mm
• Standard Needle Gauges: 1/4" (6.4 mm)
• Optional Needle Gauges: 3/16" (4.8 mm) - 9/32" (7.2 mm) - 3/8" (9.6 mm) - 1/2" (12.7 mm, 3 needles)
• Power Supply Voltage: 220 V 50/60 Hz
• Sewing Machine Motor: Juki XCG 554 20Y - 550W
• Control Box: XCG MFY 2005
• Air Consumption: 3 L/min

FEATURES

• Air compressed economizer working ONLY when chain cutter is activated
• Innovative pneumatic traction control on the feeding belt (PATENTED)
• Stacker
• Thread breakage sensor
• Automatic thread trimmer
• One leg adjustable stand
• Control panel to adjust chains at beginning and end of the pocket
• Easy maintenance and setup of the unit


OPTIONAL

• Manual label insertion device
• Second storage disk
• Loader V070

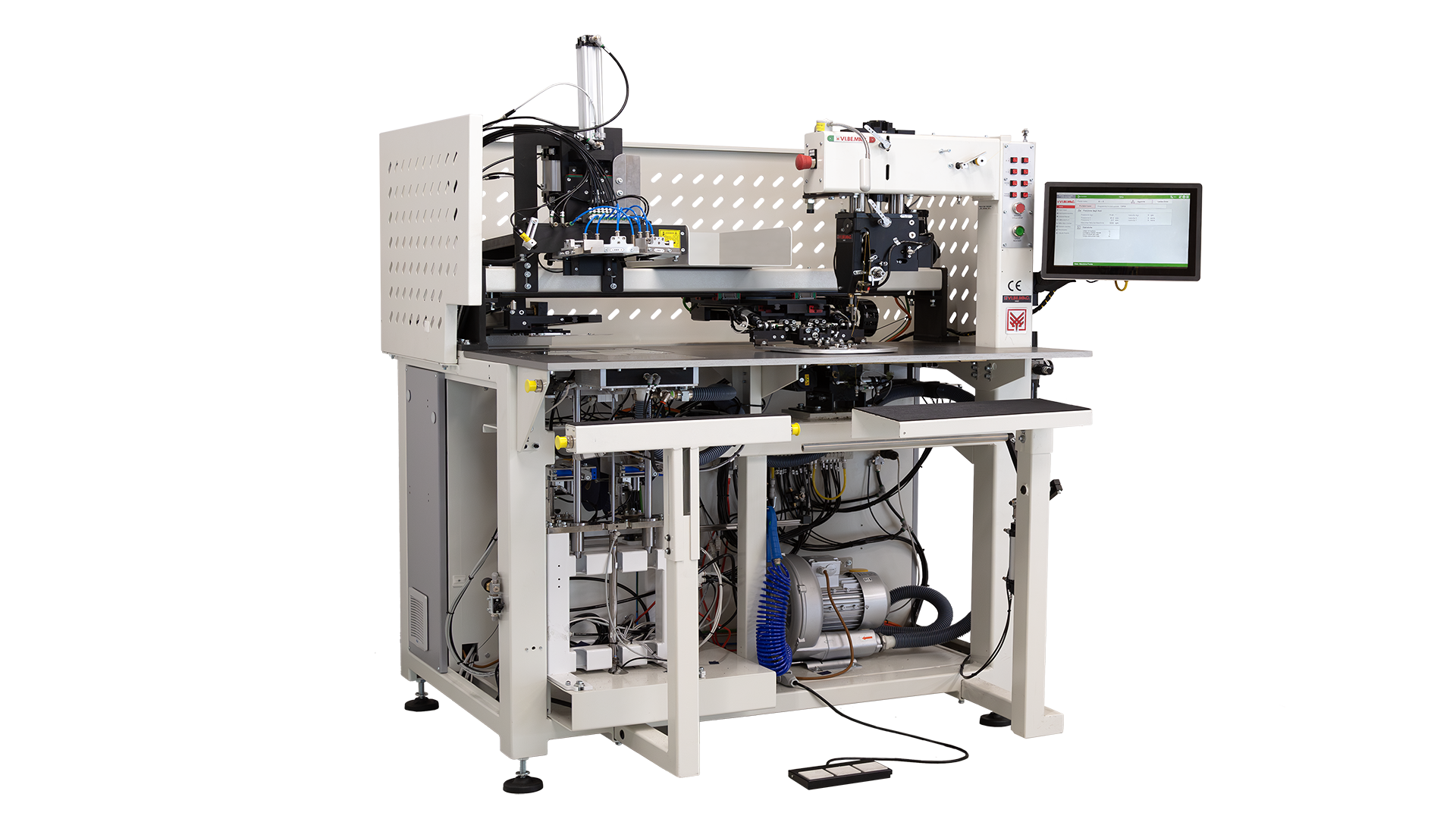

The VM01 is a state-of-the-art pocket attaching unit developed with Italian technology.
Featuring an innovative cold creasing system, it efficiently attaches back pockets on jeans and work trousers without the need for pre-ironing.

With adjustable speed and the ability to handle various pocket designs, the VM01 is a versatile addition to any production line. Moreover, its wide working area and the ability to raise the sewing mechanism for more room make it stand out from standard pattern machines.
Additionally, the unit’s easy changeability of jigs and its cost-effectiveness provide enhanced flexibility.

» Dual Independent Motor Control
The VM01 features two separate motors controlling the needle bar and crochet, providing greater sewing flexibility and precision for higher quality results

» Wide Working Area
The VM01 offers a wider working area, allowing for more flexibility when sewing pockets not only on trousers, but also on other types of clothing. With the ability to raise the sewing mechanism, this unit provides additional room for maneuvering and sewing, making it stand out from standard pattern

TECHNICAL SPECIFICATIONS

• Sewing Head: Max Sewing Speed: 3500 rpm
• Sewing Area: 280 X 280 mm
• Sewing Machine Motor: Ac Servomotor
• Power Consumption: 0.8 Kw/h
• Power Supply Voltage: 380 V + N
• Pneumatic Supply: 7 Bar
• Air Consumption: 3L/cycle

FEATURES

• Patented sewing head for attaching pockets without pre-ironing
• Adjustable speed for use in both large and small productions
• Laser technology to aid accurate placement and alignment of fabric
• Vacuum system and blades for folding fabric in preparation for stitching
• Computer-controlled, allowing for easy changes to the program containing all shapes and pocket data
• Remote assistance from Italy via Wi-Fi in case of technical issues
• Cost-effective, easy and fast to change jigs for added flexibility
• Includes a touch screen panel with Vibemac software for added convenience and control
• Application: Light, Medium, Heavy, Stretch Denim fabric

OPTIONAL

• Looseness kit for allowance of the quarter panel
• Reinforcement under the quarter panel to strengthen the bartack of the pockets

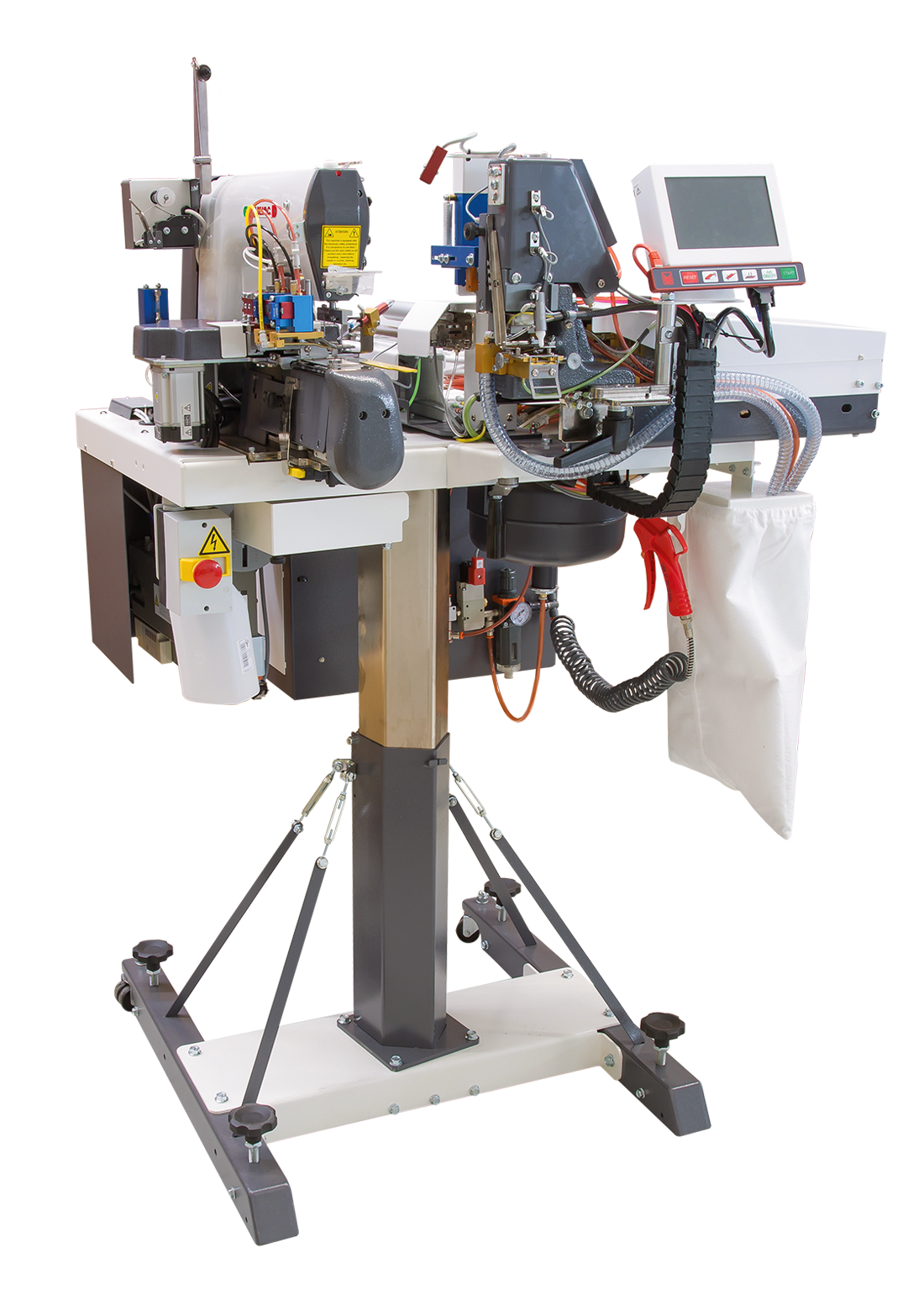

Vi.Be.Mac. has developed its own loopsetter unit keeping always the focus on the flexibility, creating a unit able to satisfy many different style requirements. The V4650EV9-UP3 can work on classic, semi classic, inserted, double loop and can perform a fully customizable bartack. In terms of quality, the unit is equipped with latest patented technologies for a perfect aligned loop, a V cut of the loop, a long last of the cutting system and the maximum comfort for the operator.

» Double compensatory presser foot: extra pressure also on multiple layers of fabric, less flexure, besides a lower barycenter

» Loop alignment system: to avoid the loop mispositioning on the fabric, especially for the folded tails (Q loop / 3D loop); the loops are always perfectly aligned, allowing the operator to work fast without the need to center every loop

» Clean and precise cut: new cutting system with single and clean cut with V or Straight shape, efficient running cost saving thanks to the long blade lasting

» Revolving replacement of devices: quick revolving type replacement of all devices. 4 preset positions: sewing head, loop pulling device, cutting system, loop loader; downtime greatly reduced

TECHNICAL SPECIFICATIONS

• Sewing Head: Vi.Be.Mac.
• Max Sewing Head Speed: 2800 rpm
• Max Sewing Machine Speed: 2600 rpm
• No. of Stitches: 1 to 999 (programmable)
• Needle Gauge: 25 to 80 mm
• Loop Width: 8 to 30 mm
• Finished Loop: 32 to 85 mm
• Sewing Area: 15 x 28 mm
• Sewing Machine Motor: Juki XCG 554 20Y - 550 W
• Control Box: XCG MFY 2005
• Operating Air Pressure: 4.5 bar
• Power Supply Voltage: 220 V 50/60 Hz
• Air Consumption: 6 L/min

FEATURES

• Customizable bartack: to satisfy every fashion and style request, and adapting the bartack density for every different fabric
• Clean and precise cut: new cutting system with single and silent cut, efficient running cost saving thanks to the long blade lasting
• 7” colored super fast touch screen panel
• CPU assures a much better software management, a better seam quality, easier adjustments and patterns, more precision, more customizable and more fashion options
• Updates through USB or internet (remote control)
• Preview of new patterns visible on the screen
• Auto-diagnostic system to avoid errors
• Software available in 8 different languages: Italian, English, Spanish, Portuguese, Turkish, Russian, Arabic, Chinese
• New design of the stand
• Fast adjustment of opening / closing loop guides without use of any tools
• Panasonic X&Y-axis drive motor
• Sportswear loop with device included

OPTIONAL

• Double loop & classic loop with OPTIONAL devices

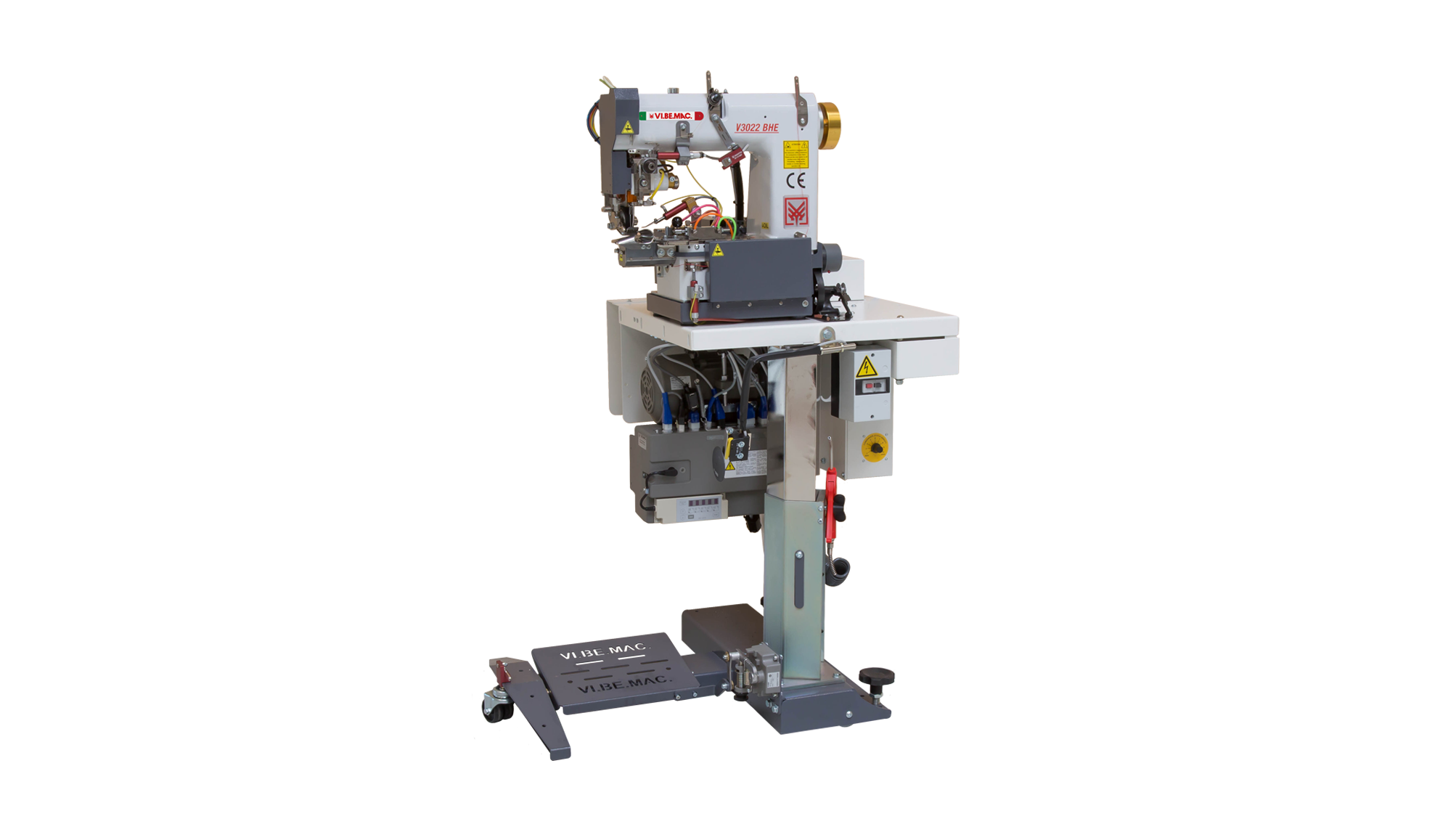

Benchmark in Vi.Be.Mac. product’s line (the world famous unit), this unit is entirely designed and manufactured in its own factory. The V3022BHE represents the markets solution to trouser hemline problems: accurate, productive and characterized by the flexibility that has become the hallmark of all Vi.Be.Mac. products.

Adjustable front and reverse folders, with a high standard efficiency, especially in terms of flexibility thanks to the fast conversion kit able to change from chain stitch to lockstitch and vice-versa in approx 25 minutes.

» Fast conversion (patented)
Thanks to the fast conversion kit the unit can be converted in less than 25 minutes from lockstitch to chain stitch and vice-versa

» Needle feeding technology
Able to perform on the most difficult stretch fabrics, always granting a high quality result

» King size hook system
Thanks to the king size hook the bobbin changes are reduced drastically with higher productivity

TECHNICAL SPECIFICATION

• Max Sewing Machine Speed: 4000 rpm chain stitch, 3500 rpm lockstitch
• Standard Stitch Length: from 0.9 to 5 mm (optional till 9 mm)
• Hem Width: from 9 to 30 mm (optional 42 mm)
• Sewing Head: Vi.Be.Mac.
• Sewing Machine Motor: Juki XCG 554 20Y - 550 W
• Control Box: XCG MFY 2005
• Power Supply Voltage: 220 V 50/60 Hz
• Air Consumption: 2 L/min

FEATURES

• Condensed stitch for closing: on the chain stitch style hemming operation it’s possible to close the stitches with a condense stitch, avoiding the need of another operation step
• Two needle plates with thread trimmer: for chain stitch and lockstitch
• Change from light to heavy fabrics: made without any alteration to mechanical components or electronic adjustments
• Pneumatic system for the toggle-joint opening of the guide: it can be selected by the operator in two different modes, manual or automatic, with the foot lifting at the same time
• Pneumatic foot lift
• Electronic stitch length can be set up easily with the electronic panel, for the maximum flexibility and operator’s comfort
• Front and reverse adjustable folders
• New design of the stand: easy adjustment in height

OPTIONAL

• Increased hem width: 42 mm
