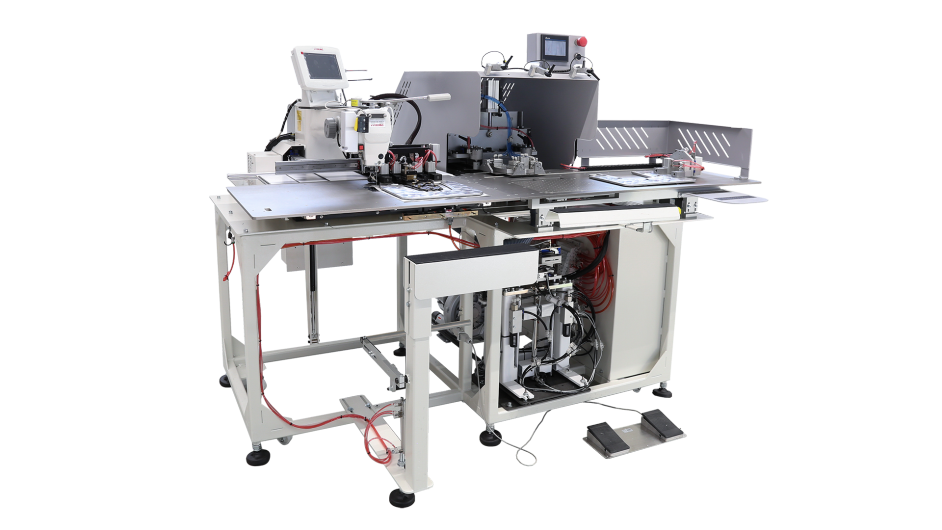

Vibemac model VM02 (single head) and VM02-DH (double head), automatic programmable pocket setter machines with folding group, are the most efficient solution on the market.

High productivity combined with excellent quality are the strengths of these automatic machines. The retractable inner clamp ensures high stitching quality across various fabrics. Its ease of use enables even non-expert workers to operate it without any effort.

Moreover, not needing a pocket creasing machine saves space and energy, boosting productivity instantly.

Custom pocket jigs can be made locally or shipped with sewing programs in a matter of days. Additionally, programming and program adjustments can be easily done directly on machine’s interface.

» New folding sysytem: it guarantees optimal results for all fabric types and pocket shapes, even in case of pockets with just 7/8mm of excess material, ensuring perfect quality results after washing

» Servo motors: for moving the fabric between the various work stations, to ensure high speed and precision

» Easy tranformation: the VM02 model can easily transform into the VM02-DH in just a few simple steps

TECHNICAL SPECIFICATIONS

• Max sewing speed: 2700 rpm
• Sewing area: 300 x 236 mm
• Productivity (regular medium sized pocket): 130 trousers/hour
• Power supply: 230V mono phase 50/60 Hz, 1.0 kW
• Air consumption: 0.6 L/cycle
• Air pressure: 5.5 bar

FEATURES

• Height of the presser foot managed by a step motor, programmable in the sewing cycle
• The sewing head features a shuttle hook allowing for sewing with thick upper threads or multiple threads simultaneously
• Quick change of jig managed by operator panel
• 3 laser pointers for fast and precise aligning of the material
• Worktop coated in SERIFLON (special surface treatment containing Teflon) which allows optimal sliding for all types of fabric
• Compact stacker design for optimal performance even during highspeed operations

OPTIONAL

• Looseness kit for allowance of the quarter panel
• Reinforcement under the quarter panel to strengthen the bartack of the pockets
• Protection barrier to ensure extra safety in working environment
